High Flow Rate Drilling Fluid Mud Cleaner For Well Drillings For Sale
Posted at: Offers to Sell and Export | Posted on: Monday 7 August 2017 9:36 am | Poster last visit: Thursday 4 January 2018 |
Product Category: Main
» Mining and Well Drilling Machinery and Accessories
» Oil and gas drilling and exploration equipment
» Drilling and workover rigs and equipment
» Mud cleaning equipment
» High Flow Rate Drilling Fluid Mud Cleaner For Well Drillings For Sale
Product Description:

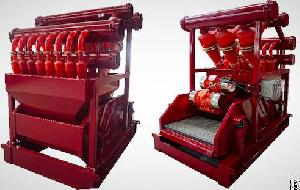

Aipu high quality Hunter series mud cleaner is rather popular equipment with customer all over the world.
The integration of desander cone, desilter cone, downstream shaker bring great efficiency and performance
D-sander cones will get rid of solids left in drilling mud discharged from primary shaker, D-silter cones will separate paricals larger than 15 microns. Then drilling fluid after processed will be fed into decanter centrifuge by screw pump or submersible slurry pump
How To Choose a Mud Cleaner
Mud flow: Mud cleaner mud flow is decided by desander & desilter size and qty. The desander cone normally choose 10 inch size and desilter cone choose 4 inch size. Once cone size is fixed, the mud flow will be fixed depending on cone qty.
Bottom shaker: The bottom shaker will work to dry solids out of desander & desilter cone nozzle. The larger shaker deck will help for dry product and smaller shaker deck will save cost.
Electrical standard: Different area may require different standard like IECEX, ATEX, UL, DGMS, etc. Before order any equipment, please confirm electrical standard.
Customized design: Cone size and qty can be customized design to reach different mud flow and performance
Mud Cleaner specifications
Model Hunter 50 Hunter 90 Hunter 120 Hunter 200 Hunter 240 Hunter 320
Capacity 50m³/h 90m³/h 120m³/h 200m³/h 240m³/h 320m³/h
Desander Size 8 inch 10 inch
Desander Qty 1 Pcs 2 Pcs 3 Pcs
Desilter Size 4 inch
Desilter Qty 4 Pcs 6 Pcs 8 Pcs 10 Pcs 12 Pcs 16 Pcs
Work Pressure 0.25~0.45 MPa
Separate Point 15μm～74μm
Bottom Shaker Model Hunter Mini Hunter D3 Hunter MG4
Vibration Mode Linear Motion
Vibrator Motor 2×0.75Kw 2×1.72Kw 2×1.72Kw
G Force ≤7.5G
Deck Angle 2° -1 - +5°
Screen Area 1.35㎡ 2.27㎡ 2.73㎡
Screen Panel 2 Pcs 3 Pcs 4 Pcs
Dimension (mm) 1650×1250×1750 1650×1250×1900 1650×1250×1900 2455×1850×2250 2455×1850×2250 2850×1800×2250
Weight(Kg) 1100 1600 1650 2100 2150 2350
Remark 4" cone =12~15m³/h, 8"cone=30~35m³/h, 10"cone=90~120m³/h. It can be configured according to clients' demand
Company Contact:
Contact Name: Jessie
Company Name: Aipu Solids Control
Email:
Tel: +86-18691483929
Fax: +86-2963611978
Street Address: 4th Jingyuan Road,
Jinghe Industry Zone
Xi'an, Shaanxi 710200
China
Website: https://www.aipusolidcontrol.com
Member name: aipusolidcontrol
Country: China
Member Since: 11 July 2017
Total Leads: 172 aipusolidcontrol Import Export Business Leads
Business focus: Solids Control Equipment, Shale Shaker, Mud Cleaner, Centrifuge
