Product Description:

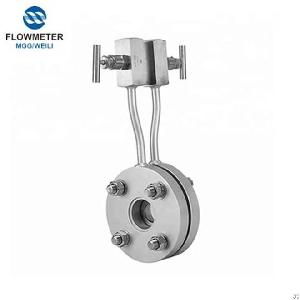

High Precision Ss304 4-20ma Gas Orifice Plate
Standard Stainless Steel Orifice Plate Meter, High Precision
Gas Orifice Plate Supplier
Quick Details:
Place of Origin Henan, China (Mainland) Brand Name WEILI Model Number WLG
Accuracy 1.0% orifice plate Application Measuring orifice plate Medium temperature -20 ~ 530℃ orifice plate
Product Name high precision SS304 4-20mA gas orifice plate Power supply DC24 V/220VAC 50HZ orifice plate measurement accuracy ±1cm(Pillar diameter 1cm)
Output 4-20mA /RS485 orifice plate Medium Gasoline orifice plate Connection Thread orifice plate
Product Description:
high accuracy oil low price orifice plate
WLG is a kind of throttling device which possesses advantages of simple structure, and good performance .The design, manufacturing and applicationare all in conformity with the stipulations of international standards ISO5167-1991 or national standards GB/T2624-93.WLG orific-plate flowmeter can be used to measure volumetric flow of the stable one-orientation medium in the closed pipes coupled with differential pressure transmitter and relative flow display instrument .It is widely used in petroleum, chemical.metallurgy, power, environment protection.
technical parameters
Nominal Bore: DN20~ DN2000mm
Mode Nominal Bore Aperture proportion
β=d/D Renault range
Red Nominal pressure
MPa Material
Angle joint 20~2000 0.2~0.75 5×103~108 0.6~6.3 Orifice plate Ring casing Flange
Flange 20~2000 0.2~0.75 8×103~108 Stainless steel Stainless steel or Carbon steel Stainless steel or Carbon steel
Main Features:
1.The construction is simple, fastness and easy to install .
2.Pressure tapping mode : Angle joint or flange mode.
3.Needless of true flow calibration.
4. Widely used, working reliably, performing stably.
5.Various accessories can be designed for customers.
More Product Please View Hifactory.
