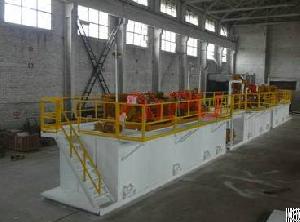

High Quality Coal Seam Gas Exploration Mud Circulation System For Sale
Posted at: Offers to Sell and Export | Posted on: Thursday 3 August 2017 8:41 am | Poster last visit: Thursday 4 January 2018 |
Product Category: Main
» Mining and Well Drilling Machinery and Accessories
» Oil and gas drilling and exploration equipment
» Drilling and workover rigs and equipment
» Mud cleaning equipment
» High Quality Coal Seam Gas Exploration Mud Circulation System For Sale
Product Description:
Coal seam gas exploration is similar as petroleum gas well drilling. In recent decades it has become
an important source of energy in United States, China, Australia, and other countries. CSG mud recycling is design to recycling CSG drilling mud cuttings by shale shaker, desander and desilter A decanter centrifuge can be fix for separate solids particles 2 – 7 microns for reduce mud weight. The size of CSG mud recycling system can be design and build as per jobsite demand The standard model for mud flow can be 200GPM, 500GPM, 800GPM, 1000GPM, 1500GPM
Drilling mud from well hole will flow into shale shaker directly or through a set of submersible slurry pump into shale shaker. The shaker is a first phase mud recycling equipment for 200 to 400 micron drilling cuttings by shaker screen. The fluids enter into shale shaker will drop into sand trap tank and dry solids will discharge through shaker screen.
A set of centrifugal pump sit on tank skid will pick up drilling mud from sand trap and transfer mud into desander inlet. The treated mud after desander will over flow into desander compartment and solids particles discharge through desander nozzle.
CSG Mud Recycling System Option
Model APMR-200 APMR-350 APMR-500E APMR-500H APMR-1000
Mud Flow Capacity 200GPM 350GPM 500GPM 500GPM 1000GPM
Tank Volume 5.0㎡ 11.5㎡ 11.5㎡ 19.0㎡ 26.4㎡
Total Power 23.5Kw 54Kw 84Kw 125Kw 184Kw
Tank Size 4000×2200×1500mm 6000×2200×1800mm 6000×2200×1800mm 9500×2200×1800mm 11800×2200×1800mm
Screen Area 2.7㎡ 5.45㎡ 5.45㎡ 5.45㎡ 8.18㎡
Weight 5.6t 9.5t 10.0t 16.5t 18.0t
Dimention 4000×2500×2650mm 6000×2500×3350mm 6000×2500×3350mm 9500×2500×3450mm 11800×2500×3450mm
Company Contact:
Contact Name: Jessie
Company Name: Aipu Solids Control
Email:
Tel: +86-18691483929
Fax: +86-2963611978
Street Address: 4th Jingyuan Road,
Jinghe Industry Zone
Xi'an, Shaanxi 710200
China
Website: https://www.aipusolidcontrol.com
Member name: aipusolidcontrol
Country:
China
Member Since: 11 July 2017
Total Leads: 172 aipusolidcontrol Import Export Business Leads
Business focus: Solids Control Equipment, Shale Shaker, Mud Cleaner, Centrifuge
