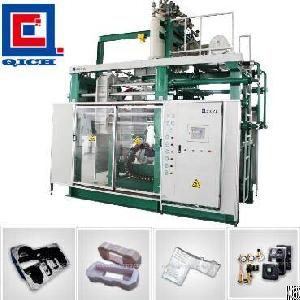

Product Description:
1.Structure of machine frame
1)Whole equipment mechanical frame is welded by 16Mn(high manganese steel
Q345)
2)We make Zinc spraying layer and spray layer on the surface of whole equipment frame, which guarantees the best capability and long lifetime for anti-corrosion.
3)Frame formwork is made of 4 pcs of guide columns, every guide columns can be independently removed and replaced, so you don’t need to make an disassemble of whole equipment.
4)Adding the Balance guiding system on the movable press frame, to ensure the parallel degree of movable press frame running while loading the weight, in order to ensure the distance/mould crack between movable press frame and fixed press frame is equality, so that the thickness and size of identity/one batch mould are same.
5)equipment use double independently filling system, can independently work
6)Full range of security surrounded, to ensure workers can’t touch with equipment working are and make them safe.
2.pipeline system
1)Steam pipeline system: the steam input of movable press frame use the ways of combined rotary assembly type, which reduce the hose using, to reduce the using cost.
All valves in steam system use imported brand (GEMU of Germany).
The 3-sides steam input system of movable press frame and fixed press frame o ensure the high efficient of steam input, also it can reduce the steam consumption
2) Air system: the machine is equipped with air drying degreasing device, to ensure the common using and using life of air element. And all valves in air system use Germany GEMU brand.
3) Water system: Equipment is equipped with quantitative water cylinder, to not affect the cooling efficient of equipment when the pressure of plant water system is too low.
4) Vacuum system: having separated-working high efficient cooling system, working Negative pressure can reach to be -7bar.
3. Hydraulic system
1) Our hydraulic driving system use an piston pump( Germany Rexroth), it have the function of Step-less speed changes and quick response speed, low noise and long using lifetime. The speed of mould closing can reach to be 280mm/s, the speed of mould opening can reach to be 300mm/s.
2) Having 6 units of hydraulic cylinder, 2 units of driving cylinder, and 4 units of mould locking cylinder, to ensure the effect of mould locking. And the mould locking pressure can reach to be 240bar
3) All valves on hydraulic driving part use imported hydraulic valves, brand is Taiwan YUATSUSEIKI.
3.Control system
1)PLC and touch screen all use Siemens brand.
2)The controlling of steam pipeline valve all use Germany COSYS electro pneumatic digital proportional valve(with Tape positioning controller), use all Digital Proportional Pulse flowing control, pulse filling, pulse heating.
3)Pressure keeping of silo use electro pneumatic proportional valve to control, which can ensure required pressure of silo pressure keeping, and use pulse filling.
4)When the safe system having fault and safe door is open, the single safety control circuit will cut the PLC output power and working power of AC contactor, so the machine can’t run, which ensure the safety of maintenance personnel.
