High Sensitivity Safety Light Curtain Stf Series
Posted at: Offers to Sell and Export | Posted on: Friday 1 June 2012 2:12 am | Poster last visit: Friday 9 August 2013 |
Product Category: Main
» Defense and Law Enforcement and Security and Safety Equipment and Supplies
» Security surveillance and detection
» Surveillance and detection equipment
» Safety light curtains
» High Sensitivity Safety Light Curtain Stf Series
Product Description:
1 .Basic introduction
STF series, sensor section size is 74 ×50, structure compact, beautiful outlook,
mainly be used in small stamping equipment, shearing equipment, machinery processing equipment, the injection molding machinery and paper cutting machinery, woodworking machinery, three-dimensional garage, and other dangerous area's protection.
2.STF series's specification
Protection range, 400-3000mm;
Specification
STFxx40 (xx=04, 06, 08, 10, 1226)
Light axis pitch 40mm
Protection height=(xx-1)×light axis pitch
STFxx40 120, 200, 280, 3601000mm
3.Working principle

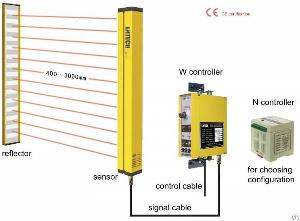

The protector consists of light curtain, signal cables, controller and control cables.The light curtain can form infrard light curtain, detect the signal of passing or intercepting, and send the signal to control box that also supplies power to the light curtain.The control box processes the signal and outputs the closed or opened signal used safety relay, and then connects the control trip circuit of the press by control cable or other protective equipment to protect the workers.
4.Detailed introduction
(1)Characteristic:The installation and adjustment are convenient, the wiring is simple, structure compact, the contour is artistic.
(2)Light curtain form:Reflection type
(3)Standard configuration:
Sensor/1, Reflector/1, W type controller/1, Signal cable 2.5m/1 root, 5m/1 root, Installation fittings/1 set;
It is allowed to choose N type controller, at this time, signal cables are 3m/1 root
(4)Controller:
W type, outside installation, control 1 set light curtain, the power
source is AC220V/110V(terminals) or DC24V; W type, outside installation, control 1 set light curtain, the power source is AC220V/110V(switch conversion) or DC24V; controller cable is equipped with standard length: N type 1.0m, W type 2.5m
(5)It can provide NPN, PNP output, at this time, we should guarantee the follow-up control circuit correspond to safety requirements and provide DC24V power source.
(6)Prompts specially:
If the power source need to be DC24V, the special explanation should be made on order.
If the length of signal and controller cables need to lengthen, the special explanation should be made on order;
5.STF series photoelectric protection device order instructions
controller
N-type (built-in) *
W-type (external)
S-type (control of external double)
Control Cable
Controller to the machine electrical connection between the length: 1.0 m *; 2.5 m ; Other ___
Signal cable
Light-emitting device to the controller cable length (5) m, by the optical device to control the cable length (2.5) m
Installation
Steel Pipe Support *
Corner plate fixation
Word plate fixation
Width of machine tool table
(1.5) m
Travel + regulatory volume slider
(300)mm
Machine Cam controller
Mechanical cam*
Electronic cam
No cam
Optical axis pitch
20mm *
30mm
40mm
Product Type
Based on the above selection(SNB1620-N)
Notes
Notes
*Identifies the parameters for the selected
Company Contact:
Contact Name: Jack
Company Name: Shandong Laien Optic-Electronic Technology Co., Ltd
Email:
Tel: 86-537-3926517
Fax: 86-537-3926519
Street Address: West Shanbo Road,
Rencheng Economic Development Zone,
Jining City, Shandong Province, 272000, China
Website: http://www.laien.cn
Member name: laientech
Country:
China
Member Since: 01 June 2012
Total Leads: 40 laientech Import Export Business Leads
Business focus: Safety Light Curtains, Safety Light Curtain Sensors, Punch, Press Portection Devices, Safety Relays, Sensor
Chat:
Verify: Safe Import Export Tips
