Product Description:

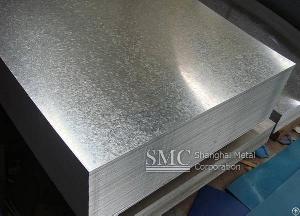

Specification of Hot Dip Galvanized Steel Sheet (GI Sheet):
1. Capacity: about 15, 000 tons per month
for the steel sheet and coil product
2. Grade: SGCC, DX51D, Q195, all according to the customer's request
3. Standard: JIS G3302 1998, ASTM A653M/A924M 2004, all according to the customer's request
4. Thickness: 0.13mm - 4.0mm, all available.
5. Width: 600mm - 1500mm, all available.
6.Standard Size: 3'x6', 4'x4', 4'x5', 4'x6', 4'x8', 5'x10', etc
7. Elongation: Min. 7%
8. Zinc coating weight: 60g/m2-600g/m2 (z180, z200, z275, z275, z300)
9. Tensile strength: 28.1 - 49.2kgf/mm2
10. Edge: mill edge, cut edge
11.Types of Galvanized Sheet Metal: (all of our patterns are custom-manufactured.)
12.Surface Treatment:
Surface Treatment Features
Chemical passivating treatment minimize the chance of white rust forming during transit and storage
maintain the bright, shiny appearance for a longer time
Oils minimize the tendency for storage and transit stain
Passivating + oils provide the protection from storage and transit stain by special chemicals called corrosion inhibitors 13.Spangle:
Surface finish Pattern Application
Normal spangle Standard spangles with flower pattern General uses
Small spanlge Minimized spangles than regular General painting applications
Non-spangle Extremely minimized spangles Special painting applications
