Hot Selling Laser Welding Plate Heat Exchanger Condenser
Posted at: Offers to Sell and Export | Posted on: Tuesday 10 October 2017 8:26 am | Poster last visit: Tuesday 6 March 2018 |
Product Category: Main
» Distribution and Conditioning Systems and Equipment and Components
» Heating and ventilation and air circulation
» Heating equipment and parts and accessories
» Plate heat exchanger
» Hot Selling Laser Welding Plate Heat Exchanger Condenser
Product Description:

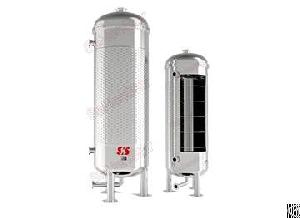

SPC condenser is applied in the condensing working condition of chemical process, or used as top condenser
of distillation equipment, or used as exhaust gas condenser in combustion equipment. It is based on world leading technology of laser welding pillow plate heat exchange technology. Pillow plates are arranged according to certain distances and form a parallel. Outside plates is the wider channel for one fluid, inside plates is the channel for another fluid to exchange heat. Pillow plate together with wide channel design not only makes high heat exchange coefficient possible, but also has technical advantages superior to traditional heat exchangers, including low pressure drop, high temperature and high pressure resistance and easy cleaning.
Application:
Power generation industry
Chemical industry
Petrochemical industry
Advantages of SPC condenser:
Item SPC condenser Shell and tube heat exchanger Detachable plate heat exchanger Spiral plate heat exchanger
Operation temperature range <800℃ <800℃ <170℃ <350℃
Maximum pressure <60 bar <200 bar <32 bar <25 bar
Heat exchange coefficient of water [W/m2·℃] 3500 2700 5600 2000
Application of air and water heat exchange Applicable Applicable Not applicable Partial applicable
Immersion in tank or water Applicable Partial applicable Not applicable Not applicable
Welded to tank and reactor Applicable Not applicable Not applicable Not applicable
Install into existing reaction tower and other equipment Flexible Partial applicable Not applicable Not applicable
All welded structure Applicable Applicable Not applicable Not applicable
Heavy contaminated liquid and other application Applicable Applicable Partial applicable Applicable
Unit area weight Low High Low High
Falling film, condenser and evaporator Applicable Applicable Partial applicable Partial applicable
Laser welding pillow plate:
Heat exchange pillow plate is machined by full automatic laser welding and forming process. Its unique pillow structure makes fluid into optimum turbulence state to achieve high efficient heat exchange. It also boasts various advantages such as dust proof, high temperature and high pressure resistance and easy cleaning, etc.
Pillow plate concept:
Pillow plate is laser welded by two plates all around and in the middle area full of weld flowers. After the forming process, the inner part of the heat transfer plate forms a pillow type cavity. Pillow design creates excellent turbulence and provides self supporting structure. In practical applications, the additional welding path is often added in the pillow heat exchange plate, in order to adjust and control the flow of fluid into and out of the heat exchange plate nozzle position, the fluid velocity and flow rate inside plate, so as to optimize the heat exchange effect.
Company Contact:
Contact Name: Kiki Qiu
Company Name: Sehenstar Energy Technology Co., Ltd.
Email:
Tel: 0086-512-69572850
Fax: 0086-512-69572851
Street Address: C605, Xi'an
Jiao Tong University Science Park,
Xiangcheng District
Suzhou, Jiangsu 215000
China
Member name: sehenstar
Country:
China
Member Since: 29 June 2017
Total Leads: 26 sehenstar Import Export Business Leads
Business focus: Bulk Solid Heat Exchanger, Ice Bank, Pillow Plate, Falling Film Water Chiller, Evaporator, Condenser, Air Cooler, Wastewater Heat Recovery
Chat:
Verify: Safe Import Export Tips
