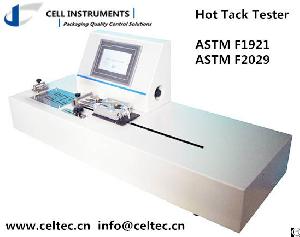

Hot Tack And Heat Seal Tester
Posted at: Offers to Sell and Export | Posted on: Monday 1 June 2015 6:05 am | Poster last visit: Tuesday 21 July 2015 |
Product Category: Main
» Engineering and Research and Technology Based Services
» Manufacturing technologies
» Quality control
» Materials testing
» Hot Tack And Heat Seal Tester
Product Description:
Hot Tack and Heat Seal Tester measures the strength of heat seals formed between thermoplastic surfaces
immediately after the seal has been made and before it cools to room temperature.
Hot Tack and Heat Seal Tester Features
1. Hot tack, heat seal, peeling and tensile test items are available
2. P.I.D. temperature control
3. 7 inch TFT touching screen operation
4. PLC control
5. Aluminum encapsulated sealing jaws
6. Multi-group parameter saving
7. Any testing speed adjustable
8. Auto zeroing, overload and over travel protection
9. Manual and foot switch
10. RS 232 port
11. professional software
Technical Specifications
Items Parameters
Sealing Temperature Ambient~250 degree celsius
Temp Accuracy ±0.2 degree celsius
Heat Seal Dwell Time 0.1~9999s
Hot Tack Dwell Time 0.1~9999s
Sealing Pressure 0.15MPa~0.7MPa
Sealing Jaws 50mmx10mm Teflon Coated
Sealing Jaws Heating Double Heating
Load Cell 200N Optional:30N50N100N500N
Accuracy 0.5 F.S.
Resolution 0.01N
Stroke 500mm
Standards
ASTM F1921 Standard Test Methods for Hot Seal Strength (Hot Tack) of Thermoplastic Polymers and Blends Comprising the Sealing Surfaces of Flexible Webs
ASTM F2029 Standard Practices for Making Heatseals for Determination of Heatsealability of Flexible Webs as Measured by Seal Strength
Company Contact:
Contact Name: Owen
Company Name: Cell Instruments Co., Ltd.
Email:
Tel: +86-531-88977152
Fax: +86-531-88977152
Street Address: Xiying
Jinan, Shandong 250000
China
Website: https://www.celtec.cn
Member name: celtec
Country: China
Member Since: 09 October 2014
Total Leads: 33 celtec Import Export Business Leads
Business focus: Testing Instruments, Testing Equipments, Packaging Test, Packaging Testers, Food Package Tester, Leak Tester, Heat Seal Tester, Seal Strength Tester
