Product Description:

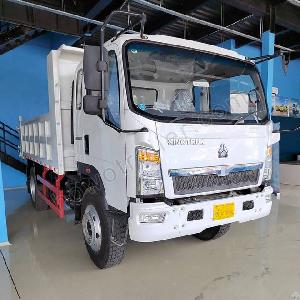

Howo 4x2 dump truck
Cabin HW76 cab, with one sleeper and two seats, 2-arm windscreen wiper system with
three speeds, damped adjustable driver's seat, with heating and ventilating system, air conditioner
Engine Make: SINOTRUK
Diesel 4-stroke direct injection diesel engine
Engine model: WP12.400, Euro 2, 400HP
6-cylinder in-line with water cooling, turbo-charging and intercooling
Displacement: 9.726 L
Transmission HW19710, 10F & 2R, with PTO
Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering ZF power steering, model ZF8118, hydraulic steering with power assistance
Front Axle VGD95, 1x9, 000 KGS, Steering with double T-cross section beam
Rear Axle HC16, 2x16, 000 KGS, Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.
Propeller Shaft Double universal joint propeller shaft with gear-shaped coupling flange
Chassis Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members
Front suspension:10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer
Brake Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake
Electrics Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
