Product Description:
You want power. You want performance. You want portability. You want CalonGloria.

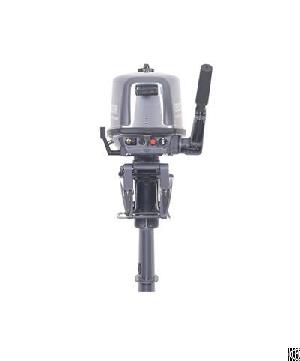

CalonGloria 5 hp
outboard would make a great outboard motor for any small watercraft such as a small sailboat, kicker dingy, jon boat, canoe, inflatable, portable boat, water tender skiff, or any other watercraft need that can accommodate a 36lbs. 2-stroke 20" short Shaft outboard motor.
Overview
CalonGloria 2-stroke benefits
●Excellent reliability with proven 2-stroke technology
●Simple in design
Easy operation and handling
●Loop charged induction for smooth operation and fuel economy
●CD ignition system for quicker starts, Light weight and easy to transport
Fundamentals for user convenience and reliability
●Through-the-prop exhaust for a quiet ride
●Thermostatically controlled cooling system for consistent engine temperature
●Stainless steel water pump housing for outstanding durability
●High grade marine aluminum alloy that provides the ultimate protection against corrosion
●Zinc coating on internal water passages for superior corrosion resistance
●Aluminum propeller
●Hour metering for easy maintenance record.
Protection
●Safety lanyard (an essential protection feature standard on all CalonGloria outboards)
●Start-in-gear protection for safer engine starting
AVAILABLE MODELS: T5BS - Manual Start, Tiller Handle, Transom height - Standard
Specifications
Type Two Stroke
Maximum output 5hp (3.7kw)
Dimensions mm S: 677*322*978
L: 677*322*1011
Weight kg S: 20.5
L: 21
Maximum operating range rpm 4500-5500
Gear Oil quantity L 0.1
Number of cylinder 1
Bore x Stroke mm 54.0 x 45.0
Displacement cm³ 103
Option 12V-40W, 60W
Cooling system Water/Thermostatic Control
Starting system Choke valve
Ignition CDI
Spark plug NGK BR7HS-10
Idel speed rpm/min 1150±50
Spark plug gap mm 0.6-0.7
Engine oil Genuine recommended 2 stroke engine oil
Oil Ratio Fuel Mixture : 50:1
Fuel tank size L 2.8/12
Speed control Twist grip type
Gear ratio 2.08 (27:13)
Gear Shift F-N Shift
Located in Huzhou of China, Zhejiang Cang Long Power Machinery Co., Ltd., branded Calon Gloria, is a professional outboard motor manufacturer that integrates R&D, production, sales and after sales. With initial fund of 35 million, a factory covering an area of 9975 square meters and the most advanced production line in China, CG can realize an annual production capacity of 30000 pieces.
