Product Description:

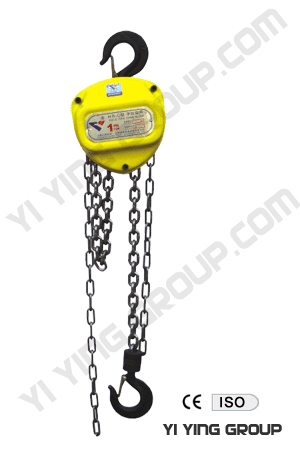

HS-C series chain hoist is a newly designed product on the base of HSZ product, it combines the advanced
technology in the world. Besides those traditional characteristics, HS-C series chain hoist is more labor saving and beautiful and it has higher practicability.
HS-C chain hoist Parameters:
Model HS-C 1/2 HS-C1 HS-C1 1/2 HS-C2 HS-C3 HS-C5 HS-C10 HS-C20
Capacity t 0.5 1 1.5 2 3 5 10 20
Standard lifting height m 2.5 2.5 2.5 2.5 3 3 3 3
Test load t 0.75 1.5 2.25 3 4.5 7.5 12.5 25
Min distance (hook to hook) mm 255 306 368 444 486 616 700 1000
Chain pull to lift full load N 221 304 343 314 343 383 392 392
No. of load chain fall lines 1 1 1 2 2 2 4 8
Diameter of load chain mm 6 6 8 6 8 10 10 10
Dimensions mm A 125 147 183 147 183 215 360.5 585
b 111 126 141 126 141 163 163 191
