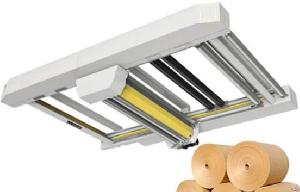

Huatao Auto Splicer For Corrugated Cardboard Production Line
Posted at: Offers to Sell and Export | Posted on: Thursday 23 June 2022 1:05 am | Poster last visit: Friday 1 July 2022 | | Dominica | Serbia
Product Category: Main
» Industrial Manufacturing and Processing Machinery and Accessories
» Industrial process machinery and equipment and supplies
» Packaging machinery
» Packaging machinery supplies
» Huatao Auto Splicer For Corrugated Cardboard Production Line
Product Description:
Huatao Group - Corrugator Belt & Spare Parts
www(dot)htwirebelt.com
maple(at)huataogroup.com
Tel:
0086 133 8311 0583
WhatsApp: 0086 133 8311 0583
Product Description
The Auto Splicer functions as a central element for smooth, continuous operation, fast and helps to increase production output and saving production cost during the corrugated cardboard production process.
Auto Corrugated Plant Automatic Splicer Function:
1. No paper tail connecting, reduce the loss of the base paper
(the overlap of the base paper about 40mm width).
2. When the paper truck remove, automatically transferred
out, vacuum-adsorbed, easy to operate, and fully automatictension control, paper-connecting zero error.
3. All adopt PLC automatic control.
4. When the buffer wheel pull for the first time, it's easy to pull
and aligned automatically.
5. Collecting paper controlled by cylinder, will not cause the broken tile and blistering problem.
Design speed: Model 300-280 m/min(Flute liner)250m/min(Top liner)
Model 400-380 m/min(Flute liner)250m/min(Top liner)
Paper Connection: overlap connecting
Design width: the maximum paper width can reach 2550mm
Weight of the original paper: 50g/m2~350g/m2
Paper reaction completion time: about 1 second
Gas source: a minimum of 0.6MPa dry clean air source
Power demand: power supply:380V, 50Hz, 20A control power:12V, 24V
Paper frame brake: pneumatic brake/ magnetic powder brake
Company Contact:
Contact Name: Lida Zhang
Company Name: Shijiazhuang Huatao Import And Export Co., Ltd
Email:
Tel: 031180690567
Fax: 0086 133 8311 0583
Street Address: Zhonghua
North
street
shijiazhuang,
Hebei 050000
china
Other Contact Info:
Whatsapp: 0086 133 8311 0583
tel: 0086 133 8311 0583
skype: Huatao-group
Website: https://www.htwirebelt.com
Member name: HTLida
Country:
China
Member Since: 11 June 2022
Total Leads: 20 HTLida Import Export Business Leads
Business focus: Corrugator Belt, Corrugating Roll, Spray Humidifier, Roll Stand, Cassette Single Facer, Auto Splicer, Gluer Machine, Automatic Stacker
Chat:
Verify: Safe Import Export Tips
www(dot)htwirebelt.com
maple(at)huataogroup.com
Tel:
0086 133 8311 0583
WhatsApp: 0086 133 8311 0583
Product Description
The Auto Splicer functions as a central element for smooth, continuous operation, fast and helps to increase production output and saving production cost during the corrugated cardboard production process.
Auto Corrugated Plant Automatic Splicer Function:
1. No paper tail connecting, reduce the loss of the base paper
(the overlap of the base paper about 40mm width).
2. When the paper truck remove, automatically transferred
out, vacuum-adsorbed, easy to operate, and fully automatictension control, paper-connecting zero error.
3. All adopt PLC automatic control.
4. When the buffer wheel pull for the first time, it's easy to pull
and aligned automatically.
5. Collecting paper controlled by cylinder, will not cause the broken tile and blistering problem.
Design speed: Model 300-280 m/min(Flute liner)250m/min(Top liner)
Model 400-380 m/min(Flute liner)250m/min(Top liner)
Paper Connection: overlap connecting
Design width: the maximum paper width can reach 2550mm
Weight of the original paper: 50g/m2~350g/m2
Paper reaction completion time: about 1 second
Gas source: a minimum of 0.6MPa dry clean air source
Power demand: power supply:380V, 50Hz, 20A control power:12V, 24V
Paper frame brake: pneumatic brake/ magnetic powder brake
Company Contact:
Contact Name: Lida Zhang
Company Name: Shijiazhuang Huatao Import And Export Co., Ltd
Email:
Tel: 031180690567
Fax: 0086 133 8311 0583
Street Address: Zhonghua
North
street
shijiazhuang,
Hebei 050000
china
Other Contact Info:
Whatsapp: 0086 133 8311 0583
tel: 0086 133 8311 0583
skype: Huatao-group
Website: https://www.htwirebelt.com
Member name: HTLida
Country:
ChinaMember Since: 11 June 2022
Total Leads: 20 HTLida Import Export Business Leads
Business focus: Corrugator Belt, Corrugating Roll, Spray Humidifier, Roll Stand, Cassette Single Facer, Auto Splicer, Gluer Machine, Automatic Stacker
Chat:
Verify: Safe Import Export Tips
