Description:
Hydraulic Mill Roll Stand//Corrugated Cardboard Mill Roll Stand/Paperboard Mill Roll Stand: Symmetrical structure, can carry two craft paper at one time, which can work without brake. Reel paper lift-lower, clamp, loosen, movement, contraposition operated by hydraulic pressure. feeding craft / reel paper quickly.
Function Of Mill Roll Stand:
*Each arm setup four directions button, it is easy to operate
*It can be loading two paper rolls at the same time, without stopping the machine for changing paper roll
*The whole machine uses 6 cylinders fully hydraulic controlled, hydraulic control arm lift and down, clamping and open, left and right moving
*Tension control: multipoint pneumatic brakes, brakes good performance, loses heat fast
*The chuck adopts inner expansion type or teeth type, reduce the destruction of the paper core. saving paper.
Electric Mill Roll Stand
Product Parameters:
Max. Working Width 1000mm-1800mm
Min. Working Width 700mm
Max. Paper Mill Dia 1500mm
Maximum paper diameter 1400mm
Max. Supporting Weight (One side) 2T

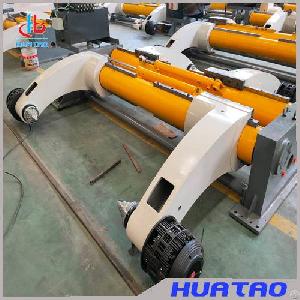

Hydraulic Mill Roll Stand
Hydraulic Mill Roll Stand//Corrugated Cardboard Mill Roll Stand/Paperboard Mill Roll Stand :Symmetrical structure, can carry two craft paper at one time, which can work without brake.
Reel paper lift-lower, clamp, loosen, movement, contraposition operated by hydraulic pressure. feeding craft / reel paper quickly.
Product Parameters:
Mill Roll Stand Parameters
Maximum Paper Roll Diameter φ1500mm
Effective Width 900mm-2200mm
Maximum Support Weight 3t
Main Axis φ242mm
Pneumatic Source Pressure(Mpa) 0.4---0.8Mpa
Magnetic Valve Voltage 380V 50HZ
Working Pressure(mpa) 16-18mpa
Mill Roll Stand Characteristics
The Structure is Double Rotary Shafts with Four Arms
Support Two Paper Mill Rolls on both Arms at the Same Time
Hydraulic Control for Paper Mill Roller Up-down, Clamp-open and Centering
Web Tension Controlled by Pneumatic Brake or Manual Brake
Tapered Center, Stretch Center and Springiness Chucks are Optional
