Huawei Cx600 Metro Services Platform Cx600-x3
Posted at: Offers to Sell and Export | Posted on: Wednesday 21 March 2018 6:30 am | Poster last visit: Wednesday 21 March 2018 |
Product Category: Main
» Information Technology Broadcasting and Telecommunications
» Data Voice or Multimedia Network Equipment or Platforms and Accessories
» Network service equipment
» Network routers
» Huawei Cx600 Metro Services Platform Cx600-x3
Product Description:

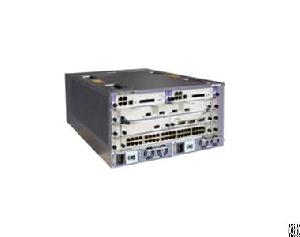

Huawei CX600 Metro Services Platform CX600-X3
Huawei network Routers
Item Description
Dimensions (H
x W x D) DC chassis: 175 mm x 442 mm x 650 mm (6.89 in. x 17.40 in. x 25.59 in.) (chassis main body dimensions)175 mm x 442 mm x 750 mm (6.89 in. x 17.40 in. x 29.53 in.) (chassis dimensions including the chassis's front and rear assembly and cable racks)
AC chassis: 220 mm x 442 mm x 650 mm (8.66 in. x 17.40 in. x 25.59 in.) (chassis main body dimensions)220 mm x 442 mm x 750 mm (8.66 in. x 17.40 in. x 29.53 in.) (chassis dimensions including the chassis's front and rear assembly and cable racks)
Installation position N68E cabinet or a standard 19-inch cabinet.
Typical power consumption DC chassis: 920W
AC chassis: 1070W
Heat dissipation DC chassis: 2982.1 BTU/hour
AC chassis: 3468.3 BTU/hour
Weight Empty chassis DC chassis: 12 kg (26.46 lb)
AC chassis: 20 kg (44.10 lb)
Full configuration (maximal) DC chassis: 42kg (92.61 lb)
AC chassis: 52 kg (114.66 lb)
DC input voltage Rated voltage -48 V DC / —60 V DC
Maximum voltage range -38.4 V DC to -72 V DC
AC input voltage Rated voltage 200 V AC to 240 V AC (220V)
Maximum voltage range 180 V AC to 264 V AC
System reliability MTBF (year) 27.44
MTTR (hour) 0.5
Ambient temperature Long-term 0°C to 45°C (32°F to 113°F)
Short-term -5°C to 55°C (23°F to 131°F)
Storage temperature -40°C to 70°C (-40°F to 158°F)
Relative humidity Long-term 5% RH to 85% RH, no coagulation
Short-term 5% RH to 95% RH, no coagulation
Storage humidity 5% RH to 95% RH, no coagulation
Long-term altitude ≤ 4000 m (13123.2 ft). If the altitude is between 1800 meters (5905.44 ft) and 4000 meters, the maximum operating temperature of the device must decrease by 1°C for every 220 meters (721.776 ft) increase in altitude.
Storage altitude Lower than 5000 m (16404 ft)
Company Contact:
Contact Name: Leo Yang
Company Name: Shenzhen Uonel Technology Co., Ltd.
Email:
Tel: +86-0755-82153862
Fax: +86-0755-82153862
Street Address: Room C, 19f,
Guanghao International, Meilong Road
441, Longhua New Dis, Shenzhen
518110 China Shenzhen, Guangdong
518110 China
Other Contact Info:
Skype: Ywx39894
Website: http://www.uonel.com/
Member name: ShenzhenUonelTechnology
Country:
China
Member Since: 21 March 2018
Total Leads: 16 ShenzhenUonelTechnology Import Export Business Leads
Business focus: Huawei, Router
Chat:
Verify: Safe Import Export Tips
