Product Description:

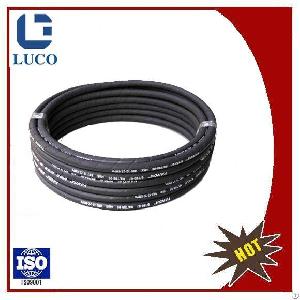

Wire Braid Hydraulic Rubber Hose SAE R16
Wire braided, smooth/cloth cover, Construction:
This hose
consists of an inner tube of oil resistant synthetic rubber, two wire braids reinforcement, and an oil and weather resistant synthetic rubber cover
Applications:
Hose range suitable to carry hydraulic fluids, such as glycol, mineral oils, emulsion, hydrocarbons, etc.
Working temperature:
From -40°C up to +100 °C
Hose I.D. Hose O.D. Max. Working Min. Bend Radius Min. Burst Weight
Pressure Pressure
INCH MM INCH MM PSI MPA INCH MM PSI MPA lbs/ft
1/4 6.4 0.57 14.5 5, 000 34.5 2.0 51 20, 000 137.9 0.18
3/8 9.5 0.74 18.8 4, 000 27.6 2.5 64 16, 000 110.3 0.24
1/2 12.7 0.87 22.0 3, 500 24.1 3.5 89 14, 000 96.5 0.31
5/8 15.9 1.00 25.4 2, 750 19.0 4.0 102 11, 000 75.8 0.36
3/4 19.0 1.14 29.0 2, 250 15.5 4.8 121 9, 000 62.1 0.49
1 25.4 1.44 36.6 2, 000 13.8 6.0 152 8, 000 55.2 0.67
1.1/4 31.8 1.75 44.3 1, 625 11.2 8.3 210 6, 500 44.8 0.95
Hydraulic Hose from LUCO
Wire braid Rubber hose
1.sae 100r1at/ din en853 1sn
2.sae 100r2at/ din en853 2sn
3.sae r16
4.sae r17
Wire spiral Rubber hose
1.din 20023 en856 4sp
2.din 20023 en856 4sh
3.sae 100 r12
4.sae 100 r13
Fibre braid Rubber hose
1.sae 100r7/en855 r7
2.sae 100r8/en855 r8
