Product Description:

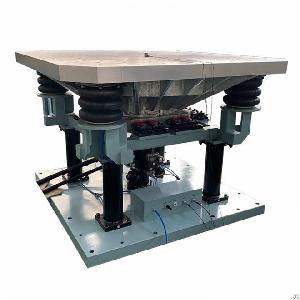

hydraulic vibration test system
KCT70 series hydraulic vibration test system is a tester that can convert
the high pressure liquid energy into power to ensure the actuating element’s reciprocating motion of the application cylinder, through the electro-hydraulic servo valve as an energy conversion and amplification device. The frequency can be very low, and the pushing force can be very large, similar to the electrodynamic vibration test system, it can realize sinusoidal vibration, random vibration, multi-point excitation and shock bump by changing its control mode. It can be used in the vibration that transportation tools such as containers, products with large package, mechanical products, electronic and electric products are subjected to in the actual environment, to improve the structure of product and save cost.
Model KCT70-5000 KCT70-1T KCT70-2T KCT70-3T
Pushing force (kN) 5 10 20 30
Frequency range (Hz) 0~200 0~200 0~200 0~150
Max. load (kg) 250 500 800 1000
Max. displacement
(p-p) (mm) 100 100 100 100
Max. acceleration (m/s2) 50 60 50 60
Table size (mm) 800*800 1000*1000 1000*1000 1200*1200
Power supply and
consumption power AC380V 18kVA AC380V 22kVA AC380V 30kVA AC380V 40kVA
Hydraulic source
Cooling mode Air cooling Water cooling
Environment Temperature: 0~40℃, humidity: ≤80%, non condense
