Product Description:
Model AF Series
Pull Force 5700-45000kgs
Rope Speed 0- 83m/min
Application
ship crane, harbor, petroleum,
drill machine, engineering machinery, geological exploration and construction machinery

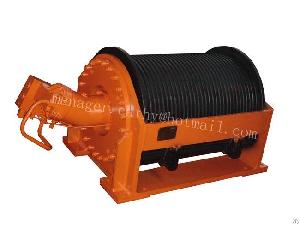

AF series high-power hoisting winches are widely used in ship crane, harbor, petroleum, drill machine, engineering machinery, geological exploration and construction machinery. It is the best choice for those situations which requires large power, high speed and high security.
Special Features:
1. Two-or three-stage planetary gearboxes, smooth operation and reasonable structure.
2. Normally closed friction type brake, high braking torque, safe and reliable operating.
3. Small volume, compact structure and high transmission efficiency.
4. Axial fixed or variable hydraulic motor with long life operating.
5. Mounting frame is available on request.
6. Balance valve, shuttle valve, limit switch and other accessories are also available on request.
Model 1st layer top layer Rope Speed Rope diam. Capacity of Rope Working Pressure Max Supply Oil Flow
kgf kgf m/min mm m Mpa L/min
Af5700 5700 4500 60 16 107 25 160
Af7700 7700 6000 52 18 118 25 180
Af9600 9600 7500 43 20 118 25 180
Af12800 12800 9800 43 24 118 27 220
Af15000 15000 12800 39 24 110 25 220
Af18500 18500 14600 85.3 28 162 27 380
Af25000 25000 19500 48.1 30 162 27 380
Af30000 30000 23000 32 32 169 30 380
Af45000 45000 34700 32 42 169 30 380
For more details, please contact me.
Meanwhile, we can also design and manufacture hydraulic winches according to your requirements.
