Product Description:

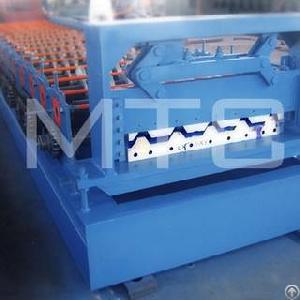

This roofing sheet roll forming machine is called IBR sheet roll forming machine which is used only in
African markets and mostly in South African markets, and the raw material is mostly Galvanized steel with the thickness from 0.5mm-0.8mm, and the width varies because there are 2 types of IBR profiles, IBR686 and IBR890. Like the other roofing sheet roll forming machine, this IBR sheet roll forming machine is also controlled by the advanced PLC control system & Omron encoder and able to run both automatically and manually.
General Introduction of the ibr sheet roll forming machine line:
Material width: 925mm
The effective width:686mm
The thickness of Coil: 0.5—0.8mm
Application: galvanized roofing sheets
The overall dimensions: 8600mmX1500mmX1300mm
Total weight: Appro.6.2 T
Main Power: 5.5 KW
The main parts of the ibr roofing sheet roll forming machine line:
Manual Uncoiler; Feeding Guider; Roll forming machine; Hydraulic Cutting system; PLC Control System; Runout Table;
Description of Main Parts:
Uncoiler: Manual Uncoiler
Inner diameter : 508mm
Outer diameter: 1250mm.
Loading weight: 5T
Roll Forming Machine:
Forming speed: 8—12m/min.
Forming steps: 16 stations;
Bracket: welded with 36 # H beam A3 steel;
Material of Shafts:45# high-quality steel;
Diameter of Shafts: 70mm;
Material of Roller: high quality 45#steel coated with hard chrome 0.05mm.
Thickness of Siding Plate: 18mm
Transmission: by chain-brackets;
Material of Chains: 45#steel with heat treatment: HRC45-50°
Motor Power: 5.5 KW
Hydraulic Cutter of the ibr roofing sheet roll forming machine:
Material of blade:Cr12 with quenched treatment 60-62
Hydraulic Power: 4 KW
Cutting Length and Quantity: Clients can set the required length and quantity on the PLC touch screen
Control System of ibr sheet roll forming machine:
Panasonic PLC Control system, touch screen, frequency converter
Voltage: 380V/50HZ/3phase
Automatically measure the length and quantity
