Product Description:
Description

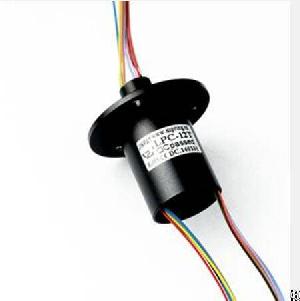

The LPC-12Tminiature slip ring is a standard, off-the-shelf unit that
uses gold contacts
at the rotary interface. Color-coded lead wires are
used on both the stator and rotor for simplifying electrical connections.
The LPC-12T allows tremendous flexibility in dealing with system size
restrictions. It is available in 4 and 6 circuit configurations.
Features
12 circuits models
2 amps per circuit, 240 VAC/ DC
Precision assembly to provide exceptional rotational life
Speed up to 300 rpm continuous
Gold-Gold contacts
Flexible, color-coded, silver-plated, TeflonŽ
UL lead wires
Superior handling of low level control signals
Metal housing optional
Advantage
Low torque minimize system torque budget
Tight packaging to fit in the most demanding space.
Smooth running
Low electrical noise
Quick shipment per your urgent requirement
360°continuous rotation
Addition of special components
Main Application
Electrical test equipment
Manufacturing and process control equipment
Indexing tables.
CCTV pan / tilt camera mounts
Robotics, rotary sensors, urgent illumination equipment
Exhibit / display equipment.
Aviation, military, instrument, medical equipment
Mini-type wire-rolling machine
Closed-circuit control
Specifications
Operating Speed
0-200 rpm
Number of Circuits
12
Voltage
240 vac/dc
Current Rating
2 amps per circuit
Temperature Range
-20℃ to +60℃
Contact Material
Gold to Gold
Lead Size
28# silver plated copper
Lead Length
Standard 250 mm (9.843inch)
Dielectric Strength
≥500 VAC @50Hz, between each circuit
Insulation Resistance
1000 mΩ @ 500 vdc
Electrical Noise
1mΩMin
