Igbt Inverter Series Advan Cut 40

Posted at: Offers to Sell and Export | Posted on: Wednesday 27 September 2023 9:43 am | Poster last visit: Tuesday 12 November 2024 |

Product Category: Main » Electronic Components and Supplies » Passive discrete components » Discrete components » Inverters » Igbt Inverter Series Advan Cut 40

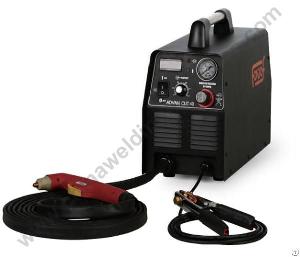

Product Photo:

igbt inverter advan cut 40

Similar Products Catalog:
Products Photos Catalog Igbt Inverter Advan Photos Catalog

Product Description:

IGBT Inverter Series ADVAN CUT 40

AIR Plasma Cutting Machines Features:


1. IGBT inverter technology,

60% duty cycle

2. Optional HF and NO-HF to fulfill market requirement

3. Pre-flow checking and post-flow cooling, Multi-protection for overheat and overload

4. Narrow cutting seam, clean cutting edge, anti deformation, high usage of metal

5. Workable at any positions with different shapes at will

6. Digital control series with 2T\4T self-locking function, ideal for continuous work

7. High success rate of arc striking leads to perfect cutting performance; Optional digital control panel to realize grid cutting function, even cutting grid structure workpiece, can maintain arc continuously

8. Strong ability of anti-fluctuation of power supply, the ratio reaches 15% ( industrial requirement 10%.)

ADVAN CUT 40 Specification

Technical Parameters ADVAN CUT 40

Rated Input Voltage (V) 1PH ~ 220V+15%

Power Frequency(Hz) 50/60

Rated Input Current(A) 24

Rated Input Power(KVA) 5.3

No-load Voltage(V) 300V

Cutting Current(A) 15-40

Rated Duty Cycle 60% 40A

Rated Duty Cycle 100% 31A

Cutting Thickness(mild steel/mm) ≦15

Cutting Thickness (stainless steel/mm) ≦15

Cutting Thickness(Aluminium/mm) ≦10

Max Cutting Thickness (mm) 20
