Indexing Controller
Posted at: Offers to Sell and Export | Posted on: Wednesday 17 December 2014 12:15 pm | Poster last visit: Friday 2 January 2015 |
Product Category: Main
» Power Generation and Distribution Machinery and Accessories
» Batteries and generators and kinetic power transmission
» Kinetic power transmission
» Step drive or stepper drive or step indexer
» Indexing Controller
Product Description:

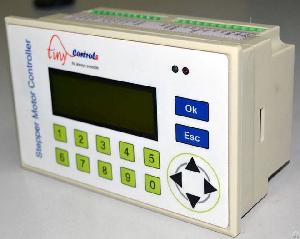

Standalone programmable indexing (table) stepper controller
Stepper Motor Controller (or Indexing Controller)
is versatile single axis controller. This controller is intended to control rotary tables but can also be used to perform many custom operations. In circular motion (i.e. division or degree mode), there is no accumulation of error since the error is distributed in whole motion if the programmed motion cannot be achieved exactly due to odd gear ratio of other setting giving high degree of accuracy.
1. A 20x4 alphanumeric LCD to display status and settings.
2. Easy to understand menus and smooth navigation.
3. 16 bit controller with 32 bit math for precise indexing.
4. For facile connections to external world signals, a provision for three opto-isolated pulse inputs is given.
5. Separate Emergency input terminal.
6. LED s for easy analysis of activity.
7. Four general purpose output signals for driving external relays etc or cascading more than one controller.
8. Configurable Gear-ratio and micro step setting.
9. High pulse rate of 50 KHz allows micro-stepping usage and maintaining the high speed of motor.
10. Gear Ratio from 1 to 999.9, in 0.1 increments.
11. Adjustable motor maximum speed.
12. Maximum speed from motor can be attained due to smooth linear acceleration ramping.
13. Manual Jogging function with adjustable speed.
14. Divide Circle in set numbers.
15. Cut to Length mode.
16. Move preset Degrees.
17. Terminal for connection to external Volume type Pot for continuous speed possible in "Continuous" mode.
18. Next move action on pulse input or Keypad button.
19. Continuous move at set speed.
20. Programmable for a sequence of 170 instructions.
21. Looping supported in program mode.
22. Start/Stop on pulse input or Keypad button.
