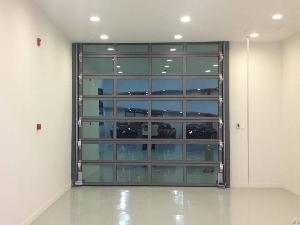

Product Description:
Applicable place:
Exhibition hall, villa garage, warehouse
Features:
1. The door panel is fully transparent
with excellent day-lighting
2. Polycarbonate is of excellent anti-theft and acoustic insulation
3. Tight seal keeps out draught, dust, and debris
Technical parameters:
Application: outside doors
Maximum size (W*H): 5, 500 mm x 8, 000 mm
Opening speed: 0.3 m/s-0.5 m/s
Closing speed: 0.3 m/s
Opening and closing frequency: >10 cycles/hour
Door panel material: aluminum alloy frame, organic glass 4mm in thickness
Track material: 2.0 galvanized zinc-coated steel (option: stainless steel)
Balance system: 82B, 60Si2Mn
Motor Torque: 60-70 N.m, IP rating: IP54
Control system: control box - switch button, emergency stop, power switch, IPrating: IP54
Safety device: radio safety edge
Voltage Frequency: single-phase/220V- 6.5, three-phase/ 380V-2.8A frequency:50-60Hz
Curtain colors: RAL 7004 RAL 5005 RAL 9003 RAL 9006
