Product Description:
This insulating glass line has got ISO9001 and CE certificates

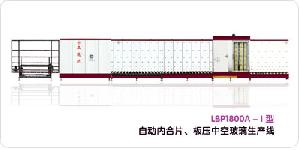

This insulating glass production line
has got ISO9001 and CE certificates
1.This insulating glass line is special equipment for aluminum groove type insulating glass, it can make two-layer and three-lyaer insulating glasses with equal glass
sheets
2.it can process glass sheets in the size of 450*400mm~2500*1800mm ,3~8mm thick.
3.The line consists of glass sheet conveying machine, glass washing machine, light detecting machine,aluminum frame positioning machine, glass sheets pressing machine, finished glass unloading machine 6 parts
4.The machine adopts the elite low voltage apparatus sensors, PLC and so on at home and abroad,
5The machine surface is treated with spray coating and baking varnish disposal,which make it atractive and durable
6. The washing machine is made of stainless steel and other corrosion resistant material to guarantee a long service life, and the drier adopt circulating air to guarantee good drying effect and to reduce the noise
7.The machine adopts human-computer interface which operates easy,
8.It can automatically discern the memberane of the coated glass with digisplay
9. Adding glass in static state to make a safe production
Main parameters
Power supply 380V,50HZ
Total power 43.2kw
Original glass sheet size
Max 2500mm*1800mm
Min 450mm*400mm
thicknes 3mm-8mm
Max difference of unequal glass sheets 50mm
Working speed
Washing speed 3-9m/min
Conveyor speed after washing 15-45m/min
Outline dimension L*W*H 19600mm*2500mm*3680mm
Net weight 5800kg
