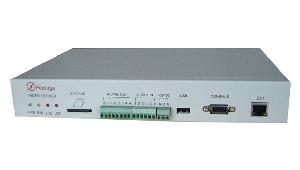

Intelligent Ditigal Ip Video Server
Posted at: Offers to Sell and Export | Posted on: Wednesday 1 September 2010 6:48 am | Poster last visit: Thursday 22 March 2012 |
Product Description:
Fibridge IP video server can easily be upgraded to intelligent video analysis server.
Features
Using
state-of-the-art H.264 or MPEG4 encoding technology
Support Full D1 resolution(704*576), speed rate is 25 frames/sec;
Provide 1 Video, 1Audio, 1 RS485 Data, 2 alarm input/output ports
OSD supported. Customized information, such as system time, words and pictures settings available
Support USB(host 1.1) port and SD card, easily to store and record video
Support Pelco-P, Pelco-D and YAAN
Setting parameter and watch video images by using WEB
Fi-View-VS managed software provide multi-picture, support digital video motion detection and event triggered alarm processing;
Intelligent analytic system allows authorized viewers make setting regularly, it could make judgment for aware of objects, cross boundary, tripwire, multi-line tripwire etc., support alarm output and storage
3.Specification
System
Main Processor: High performance embedded microprocessor
Operating System: LINUX
management software : Fi-View-VS
Audio
Connector: RCA
Audio CompressionG.711, ADPCM
Video
Video Input:1 Channel, 1.0Vp-p, 75Ω
Video Standards: PAL(625Line, 50f/s), NTSC(525Line.60f/s)
Video Compression: H.264
Video Resolution: D1/ HalfD1/ CIF/ QCIF
Frame speed: PAL 1f/s-25f/s NTSC 1f/s-30f/s
Connector: BNC
Ethernet
Rate: 10/100Mbps auto-detectable
Connector: RJ45
Half/Full Duplex auto-negotiation
Rs485
PTZ control, Connecter: Terminal Block with Screw Clamps connector
Alarm
2 channel bi-directional
Connector: Terminal Block with Screw Clamps
Normally open for output
Nominal switching capacity: 3A/277VAC or 3A/30VDC
USB Interface
1 Host port
Compatible with USB 1.1 U-disk
SD Interface
Compatible with popular SD cards
Environmental
Power Supply: 12VDC
Power consumption: <10W
Working Temperature: 055
Working Humidity: 10%90%
Atmosphere Pressure: 86kpa106kpa
Company Contact:
Contact Name: Siya Liu
Company Name: Beijing Fibridge Co., Ltd
Email:
Tel: +86 10 58858988
Fax: +86 10 58858520
Street Address: A402, Power Creative
Bldg, No. 1 Shangdi East Rd, Haidian
District, Beijing, 100085 China
Website: https://www.fibridge.com
Member name: bjfibridge
Country:
China
Member Since: 01 September 2009
Total Leads: 57 bjfibridge Import Export Business Leads
Business focus: Intelligent Video Analysis, Ip Video Surveillance, Video Optical Transmitter, Media Converter, Protocol Converter, Pdh Multiplexer, 155m Sdh, Mstp, Msap
