Product Description:

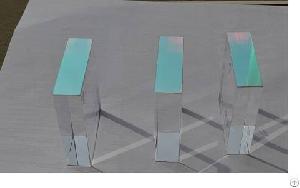

IPL Lightguide is the key optical element for IPL (intense Pulsed Light) machine, which blocks the UV
wave and transmit the useful wave from 400nm to 1200nm for laser equipment, such as photorejuvenation hair removal, vascular and acne treatment, skin rejuvenation.
LASERTEC Features:
Ideal for aesthetic medical treatment systems
High Steep cut off edge
High Transmission and Deep Blocking
“Hard” Ion-beam sputtered coating
Custom options are available
Standard Size(mm):
40x30x8, 40x10x50, 40x16x60, 40x8x15, 34x8x44, 34x8x10
Center wavelength(nm):
420, 450, 510, 540, 560, 570, 585, 640, 650, 695, 700
Material: BK7, YAG, Sapphire
Cutoff tolerance: ±15nm
Angle of Incidence: 0°
Transmission: 90% average over specified wavelength range*
Rejection: >99% average from UV to pass band
* Choosing your custom cut-on wavelength and transmit wavelength range.
