Product Description:
Basic Features

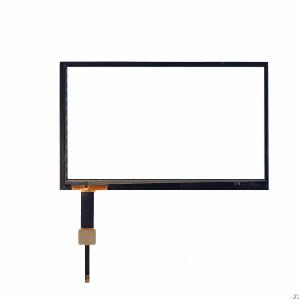

These small size PCAP touchscreen is ITO touch sensor optically bonded on a strengthend
front glass. For single-touch PCAP touch panel, sensor layer is usually single-layer ITO film. For multi-touch screen, the sensor layer is usually ITO glass or two-layer ITO film. The front glass is recommended to be chemical strengthed technology, which features perfect smoothness, above 6H surface hardness.
Structure
GF (glass-on-film), singl-touch, ITO touch sensor film optically laminated with cover glass.
GG (glass-on-glass), ITO technology PCAP touchscreen sensor glass optically bonded with strengthened front glass, supporting multi-touch.
GFF (glass-on-film-on-film), ITO technology film-on-film PCAP touch sensor optically bonded with armored glass, supporting multi-touch.
touch panel Type
COB (chip on board), touch IC from ILITEK, USB/RS232/IIC interface connectors are soldered on the controller board.
COF (chip on flexible cable), touch IC from GOODIX, FOCALTECH, ILITEK, EET, IIC interface.
Touch Points
Single-touch, Multi-touch, finger touch, supporting thin-gloved hand touch (latex gloves for example).
Surface Hardness: 6H
Transmittance: >85%
Operating Temperature: -10ºC ~ 60ºC, <85%HR
Storage Temperature: -20ºC ~ 70ºC, <85%HR
