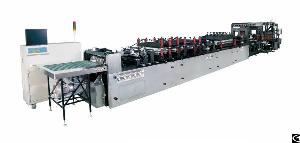

Jdm600-s Automatic High-speed Three Side Seal Bag Making Machine
Posted at: Offers to Sell and Export | Posted on: Thursday 15 December 2016 2:17 am | Poster last visit: Monday 20 March 2017 |
Product Category: Main
» Industrial Manufacturing and Processing Machinery and Accessories
» Industrial process machinery and equipment and supplies
» Packaging machinery
» Automatic bag making machine
» Jdm600-s Automatic High-speed Three Side Seal Bag Making Machine
Product Description:
Function: 3lane 3-side-seal bags.
Double cutter( round corner punch).
Double unwind
Speed：180shorts
for one minute.
Min. to Max. bag size:80--2400mm(height), 80--600mm(width)
Yield: more than 99%
System: PLC, touch screen, controlled with 4 servo motor and automatic tension control.
Model no. JDM600-S Main specification
Scope of Application Function:3-side seal bag making
Materials applied: laminated film suitable for hot-seal(conforms to national and industry standards and its sliding coefficient should be ≧3.5)
Original film size: max. width 1200mm, max. diameter: ¢800mm (paper core diameter ¢76mm)
Size and Speed of Bag-making Bag-making length:75~600mm
Bag-making width:80~2400mm(multi-skip when bag length longer than 400mm, max. 6 times to send)
Bag-making speed:3 side seal bag 35-180 shots/min (3 lane 3 side seal)
Driving Type Main drive: shaft eccentricity
Main motor:4000W Japan Panasonic servo motor
Infeeding:3 groups Japan Panasonic servo motor(1KW, 1.5KW, 2KW)
Double cutting: 2 groups Japan Panasonic servo motor
Sealing Latitudinal hot sealing:3 groups, hot bar length 640mm, Upper and lower heating plate power:3500W
Latitudinal cooling:2 groups, cooling bar 640mm
Longitudinal sealing:4 groups, hot bar length 840mm
Upper and lower heating plate power:3500W
Longitudinal cooling:4 groups, the cooling blade length:540mm
Voltage & Total Power Three-phase voltage 380V+10% 50HZ total power consumption:35KW
Control Mode Temperature control: PC control system control:PLC control, Touch Screen Display
Overall Dimension Length x Width x Height=10000mmx1750mmx2200mm
Total Weight 6000KG
Functional Option Die cutting, auto. spout sealing, accumulator system(non-stop machine when material changing)， double unwind, double cutting
Series:JDM700-S JDM1000-S JDM1200-S
Company Contact:
Contact Name: Anna
Company Name: Juding Packing Machinery(shanghai)co., Ltd.
Email:
Tel: 15257894603
Fax: 021-59130090
Street Address: No.1939, Jiamei
Road, Jiading District, Nanxiang
Town, Shanghai, China
Shanghai, Shanghai 201802
China
Website: http://www.judingjixie.com
Member name: judingpackingmachinery
Country: China
Member Since: 15 December 2016
Total Leads: 12 judingpackingmachinery Import Export Business Leads
Business focus: Machine, Pouch, Bag Machine
