Product Description:
Model:

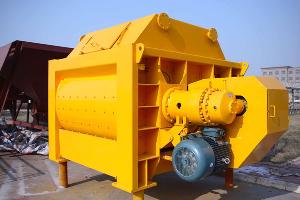

Js2000
Charging Capacity (L): 3200L
Discharging Capacity (L): 2000L
Production Capacity (m3/h):
≥100m3/h
Max Aggregate Diameter: 80/60mm
Stirring Vane
Rev Speed (r/min): 23r/min
Amount: 2×10
Stirring Motor
Model: Y280S-4
Power (KW): 75KW
Lifting Motor
Model: YEZ180L-4
Power (KW): 22KW
Pump Motor
Model: CK65-20L
Power (KW): 4KW
Dimensions (mm):
Travel State: 5860×2250×2735mm
Operation State: 10720×3870×10726mm
Total weight (Kg): 15000kg
Discharge height: 3800mm
