Product Description:
All the cover construction, hooks and chain wheels are made of high quality material. We can guarantee
that the load chains are strong and safe, exceeding the ISO international standard value, choosing it can make you feel confident in trading.

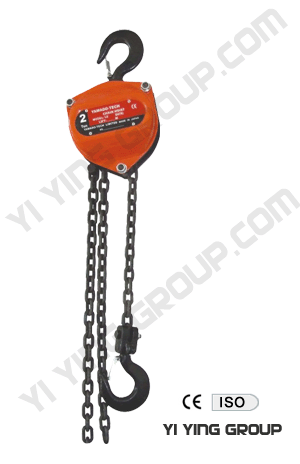

KII chain hoist Parameters:
Model KII 1/2 KII 1 KII 1 1/2 KII 2 KII 3 KII 5 KII 10
Capacity ton 0.5 1 1.5 2 3 5 10
Standard lifting height m 2.5 2.5 2.5 3 3 3 3.5
Test load ton 0.75 1.5 2.25 3 4.5 7.5 15
Min distance (hook to hook) mm 285 315 340 380 475 600 700
Chain pull to lift full load N 25 33 34 34 35 39 41
No. of load chain fall lines 1 1 1 1 2 2 4
Diameter of load chain mm 1.6 7.1 7.1 8 7.1 9 9
Net weight Kg 8.4 11 13.5 21 22 40 77
Gross Weight Kg 9.4 12 14.5 22 23 41.5 85
Packing measurement
(L*W*H) cm 30*17*32 30*17*32 30*17*32 28*19*23 30*17*32 40*20*34 62*50*32
