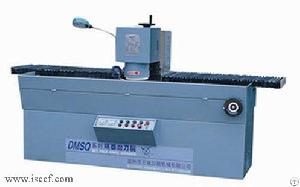

Knife Grinding Machine Model Dmsq-b Iseef
Posted at: Offers to Sell and Export | Posted on: Wednesday 27 March 2013 6:15 am | Poster last visit: Thursday 27 March 2014 |
Product Category: Main
» Industrial Manufacturing and Processing Machinery and Accessories
» Raw materials processing machinery
» Machinery for working wood and stone and ceramic and the like
» Grinding machines
» Knife Grinding Machine Model Dmsq-b Iseef
Product Description:
Product description
The grinder is an electro-magnetic chuck type end surface knife grinder with electro-magnetic
chuck loading knives features, it enhances the working efficiency greatly and is applicable to mill a variety of plane cutting tools. It is the third-generation technological knife grinding equipments of TianMing printing machine
It is the third-generation technological knife grinding equipments which is successfully developed on the basis of knife grinder DMSQ-II. The mechanical loading knife is changed by the electro-magnetic chuck loaded knife feature, it enhances the working efficiency greatly and is applicable to mill a variety of plane cutting tools.
It is an ideal grinding equipment for the printing, paper, wood, plastic leather, toilet paper and other industries.
Main function characters
Drive Mechanism
01. Main transmission: rack and pinion transmission
02. Knife rest uses turbo worm transmission can rotate freely
Machine Structure
01. Cantilever-type body made of mezzo forte cast iron
02. Wide guide rail
Worktable
Electric magnetic chuck: the pressure uniformly, more straight-line grinding makes more efficiency
Main Function Deployment
01.Dust cover
02. Delay demagnetization devices: more secure and reliable during grinding
Optional Device
01. Scraper Clamp: for toilet paper making machine (extra cost)
Main technical index
Dimension of grinding wheel: (cup shape) Ф200xФ100x 100mm
Maximum grinding width: taken 22°as final 180 mm
The efficient height of grinding wheel and working table: 80 mm
The circumrotating angle of working table: 0~±90°mm
Rotate speed of the wheel head: 1400rpm
The moving speed of the operating slide: 6 M/Min
Power of the main electric motor: 0.55 kw
Power of the wheel head electric motor: 1.5 kw
Power of the pump electric motor: JCB—22 0.125 kw
Model Max. grinding length( mm) Outlook size (L *W *H)( mm) weight( Kg)
1600b 1650 2645*900*1330 1500
1700B(1600B updated) 1700 2745*900*1330 1600
2200b 2200 3245*900*1330 1800
2400b 2400 3445*900*1330 2000
2600b 2600 3645*900*1330 2200
2800b 2800 3845*900*1330 2400
3000b 3000 4045*900*1330 2800
3200b 3200 4245*900*1330 3100
3500b 3500 4545*900*1330 3500
4000b 4000 5045*900*1330 3800
4500b 4500 5545*900*1330 4100
5000b 5000 6045*900*1330 4400
6000b 6000 7045*900*1330 5400
Company Contact:
Contact Name: Daisy
Company Name: Iseef Enterprise Inc.
Email:
Tel: 0086-577-88279799
Fax: 0086-577-88215366
Street Address: 2f203, No.161 San
Guan Dian Xiang, Xinhe Street,
Wenzhou, China
Wenzhou, Zhejiang 325300
China
Website: http://www.iseef.com
Member name: ISEEFmachinery
Country:
China
Member Since: 27 March 2013
Total Leads: 33 ISEEFmachinery Import Export Business Leads
Business focus: Packaging Machinery, Knife Grinder, Embossers, Label Maker, Lamination Machines
