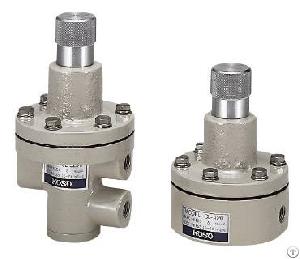

Koso Cl-420-tx High-temperature Lock Valve
Posted at: Offers to Sell and Export | Posted on: Wednesday 2 November 2022 6:57 am | Poster last visit: Wednesday 2 November 2022 |
Product Category: Main
» Industrial Production and Manufacturing Services
» Manufacturing support services
» Manufacturing equipment maintenance and repair services
» Valve or valve part testing maintenance or repair service
» Koso Cl-420-tx High-temperature Lock Valve
Product Description:
KOSO CL-420-TX high-temperature lock valve, also known as the guarantee valve, is an auxiliary component
of the pneumatic unit combination instrument. When the gas source system fails, the guarantee valve can automatically cut off the channels of the adjustment instrument and regulating valve, so that the opening of the regulating valve to ensure that the position of the failure is stopped at the position of the failure, and the process is running normally. After the gas source failure is eliminated, it can automatically restore normal work. Therefore, the insurance valve can be used as a security protection device in the automatic control loop.
Product principle:
The preservation valve is the main gas source as the signal pressure. When the signal pressure is lower than that of the air lock valve set the pressure, cut off the internal air path of the inside valve to prevent air flow. The main purpose is to install it on the control valve. When the main gas source pressure of the factory drops to the set pressure due to power outage, leaks and other reasons, automatically close the air path from the positioner to the execution mechanism to maintain the current valve bit.
CL-420TX Features:
1. Due to the small size and light weight of this product, there is no need to set up a bracket, which can be connected to the metal tube.
2. It is also sensitive to small pressure differences below 0.1kgf/m2.
3. Use epoxy resin coatings to resist corrosion resistance.
Technical parameter:
Gas supply pressure 98-588kPa, maximum 784kPa
Environmental temperature 0-+80 ° C
Relators ≤95%
Connection: RC1/4
Dimension size φ86 × 167
Net weight 1.3kg
Products are mainly designed for high temperature environment:
It is suitable for water, steam, and oil pipelines. It has the characteristics of high temperature resistance and high pressure resistance.
It is suitable for use in Thermal Power Plant, oil, chemical, metallurgy, high-temperature & high -pressure water, steam, oil and overheating steam pipelines.
