Product Description:

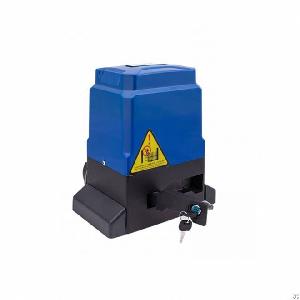

KS6002 Automatic Sliding Gate Motor Automatic door system factory Automatic Sliding Gate Operator wholesale
The
series sliding gate motor are designed for automation of sliding gates up to a maximum weight of 500kg to 2000kg, featuring a control board with adjustable speed, force output, photocell terminals.They can be used for domestic and commercial use. They have a modern design, suitable for any environment. These motors have several features that make them resistant, strong, quiet and easy to install
Products features, *QUIET & POWERFUL SERIES OF MOTOR-The integrated DC motor drives the gate opener smoothly while producing less than 58dB noise
*AUTOMATIC CLOSE-Featuring an auto-close option, this slide gate opener can be set to close in 12, 24, or 36 seconds after it opens; you can add extra 25pcs remotes to control this system for convenience.
*durable with unparalleled safety-constructed with aluminum base, copper worm-gear for durability; . rf rolling code technology prevents your remote code from being accessible to others;
*SAFTEY- When obstacle in opening, gate will stop and when obstacle in closing, the door will reverse.; In the closing process, when beam of light barrier is covered, the gate will open immediately, to protect pedstrain security.
*intelligent control board -- soft start and slow stop function; stop at any position; self-learning of the door working; easy to program and adjust the controller; built in 433.93mhz radio receiver; pedstrain model faciliate the passagn of pedstrain, etc
Automatic Swing Gate Operator Technical Datas, ks2805 ks3808 ks4001 ks5505 ks6002
Power supply 110V-240V AC, 50hz/60hz 110V-240V AC, 50hz/60hz 110V-240V AC, 50hz/60hz 110V-240V AC, 50hz/60hz 110V-240V AC, 50hz/60hz
Motor power 280W 380W 400W 550W 600W
Gate moving speed 11-13m/min 11-13m/min 11-13m/min 11-13m/min 11-13m/min
Output torque 16N.m 18N.m 22N.m 32N.m 40N.m
Output shaft 46mm 50mm 50mm 56mm 56mm
Max gate weight 500Kg 800Kg 1000Kg 1500KG 2000Kg
Remote control Frequency 433.92 MHz
Remote control distance ≥30m
Remote control mode Single button mode/ Three button mode
Limit switch Magnetic limit/ Spring limit switch
Noise ≤58dB ≤58dB ≤58dB ≤50dB ≤58dB
Working temperature -20°C - +50°C
Package weight 10Kg 11Kg 14 Kg 16.5KG 17Kg
Automatic Gate Controller Functions, Soft start and soft stop yes
Working time(adjustable) 5-100s
Pause time(adjustable) 5-100s
Stop speed (adjustable) yes
Auto close yes
Auto reverse when meet obstacle yes
Self-learning function yes
Motor brake yes
Eletric lock yes
Transmitter stored 25pcs
External output 24V
External switch One button loop/three buttons
Photocell protection yes
Motor running direction(adjustable) yes
Resistance when open and close yes
Pedestrian model yes
Manual release yes
These sliding gate motors have several features that make them resistant, strong, quiet and easy to install. If you need, welcome to contact us to know more.
