Kv-168d / F2 Six Bullet Moulds Fabric Cup Molding Machine

Posted at: Offers to Sell and Export | Posted on: Sunday 10 October 2010 6:34 am | Poster last visit: Saturday 4 June 2011 |

Product Category: Main » Industrial Manufacturing and Processing Machinery and Accessories » Raw materials processing machinery » Machinery for working wood and stone and ceramic and the like » Molding machines » Kv-168d / F2 Six Bullet Moulds Fabric Cup Molding Machine


Product Photo:

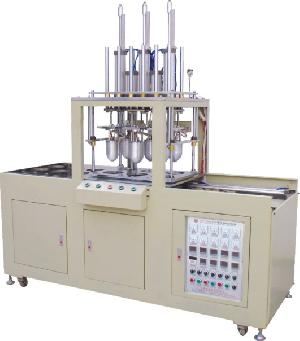

kv 168d f2 six bullet moulds fabric cup molding machine

Similar Products Catalog:
Products Photos Catalog 168d Six Bullet Moulds Photos Catalog

Product Description:

用途:该机适用于各种布料,子弹头模具的热压定型。

特点:


(1)

该机是一种大型子弹头专用定型机,适用于各种材质的布料。

(2) 运用循环定型技术,减少模具停顿时间,省时、省电。

(3) 全自动化控制,夹布装置平稳,一次定型3对,节省人力,生产效率高。

(4) 本公司针对内衣模杯生产开发的特有温度控制系统,运用可控硅移相触发电流控制加热,可使发热更均匀、平稳、省电,节能效果佳,并可延长发热管使用寿命。

技术参数:

电源/功率:220v/10.2kw

模台尺寸:900mm×475mm

机台尺寸:2300mm×820mm×2150mm

适用物料:面布料的热压定型

适用模具:子弹头模具

重量:500kg

Function: It is suitable for all kinds of different kinds of fabric to mould fabric cups by bullet head moulds through thermal-pressing.

Features:

(1) This kind of machine is a special large-size bullet head molding machine, which is suitable for various fabric materials.

(2) It uses the circular molding technology to reduce the standstill time and save electricity.

(3) It adopts the automatic control with steady cloth clamping device. It can mould three pairs of fabric cups at a time( each pairs can be moulded 3~4 layers fabrics) . It can save the labor power and improve the production efficiency.

(4) To direct at the specific temperature control system in the development of bra cups production, we utilize silicon controlled phase shifting triggering current to control heating. So, it can make the temperature more even and steady with remarkable energy-saving efficiency and it will prolong the heating tube’s service life.

Technical parameter:

Power supply/power:220V/10.2KW

Size of mould table: 900mm×475mm

Size of the machine: 2300mm×820mm×2150mm

Applicable materials: the thermo-pressing of fabric

Applicable moulds: bullet head moulds

Weight:500KG
