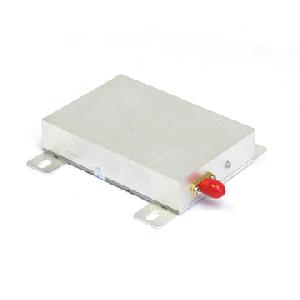

Product Description:
At least 2pcs can do wireless data transmission. The distance refers sight range in the open air. Any
questions, welcome to contact Sunny fro more details.
Data Sheet
Modulation mode: GFSK/FSK
Working frequency: 400MHz/420MHz/450MHz/470MHz
Power supply: DC 12V (±10%)
RF power: ≤5W
Interface data rate: 1, 200/2, 400/4, 800/9, 600/19, 200bps
Set before delivery
Receive current: <30mA(TTL connect)
Receive sensitivity: -123dBm (1, 200bps); -118dBm (9, 600bps)
Transmitting current: <1.5A
Sleep current: <1mA
Interface data format: 8E1/8N1/8O1
Working humidity: 10%~90% relative humidity without condensation
Working temperature: -40℃~+80℃( industrial)
RF line-of-sight range: 8km (BER=10-5@9, 600bps)
10km (BER=10-5@1200bps
Size: 85 x 58 x 16mm (without antenna port)
