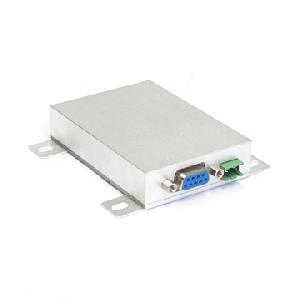

Product Description:
Data Sheet
Modulation mode: GFSK/FSK
Working frequency: 400MHz/420MHz/450MHz/470MHz
Power supply:
DC 12V (±10%)
RF power: ≤5W
Interface data rate: 1, 200/2, 400/4, 800/9, 600/19, 200bps selectable(Set before delivery)
Receive current: <30mA(TTL connect)
Receive sensitivity: -123dBm (1, 200bps); -118dBm (9, 600bps)
Transmitting current: <1.5A
Sleep current: <1mA
Interface data format: 8E1/8N1/8O1
Working temperature: -40℃~+80℃( industrial)
RF line-of-sight range: 8km (BER=10-5@9, 600bps)
10km (BER=10-5@1200bps
Size: 85 x 58 x 16mm (without antenna port)
Application:
Oil and Gas Applications:
Rtu/scada
Process Control Equipment
Natural Gas Automation
Gas Flow Measurement
Flow metering
Tank Gauging
Cathodic protection
Valve control/actuation
Instrumentation
Seismic monitoring
Telecom/Telemetry:
Data Recording
Microwave repeater sites
BTS base stations
Broadband/spread spectrum radio
VSAT's and gateways
Rural telephony
Two-way radio
Traffic Safety and Control/Transportation Aids:
Message boards
Warning signals
Emergency call boxes
Traffic counters
Intelligent transportation systems
Navigational aids
Lighting
Security:
CCTV and surveillance cameras
Lighting
Perimeter protection
Call boxes
