Product Description:

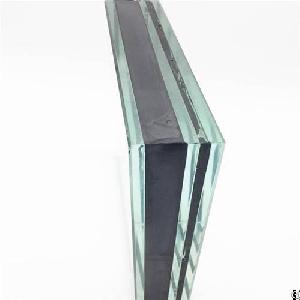

Laminated insulating glass
Product Description
Glass type Tempered insulated glass laminated glass
Color
Customer demand
Thickness 5mm 6mm 8mm 10mm 12mm 15mm 19mm
Size Customer demand ( Min300mm X 300mm to Max2440mm X 3660mm )
Edge type Flat edge
Quality Certificate EN12150, BS6206, ISO9001, IGCC
Payment term TT, L/C, Western union
Shape Rectangle shape camber
application Building facades, office buildings, public places, houses, curtain wall etc.
Laminated Insulating Glass, Tempered Glass, Curved Glass Low-e Suppliers
Composite structure of glass Product Introduction
The compound structure of laminated glass and insulating glass is divided into two kinds。
1.Laminated insulating glass
Laminated insulating glass is an insulating glass unit with a laminated outboard. This configuration can be used in applications where the exterior is overhead glazing or in specific hurricane zones where safety glazing is required for the exterior.
It is important to note, with laminated insulating glass there are two primary options for Low-E or Reflective coating placement within the unit. Coatings can be placed on the #2 surface, however superior solar performance can be achieved by placing the coating on the #4 surface, touching the air space.2.Insulating Laminated Glass
Insulating Laminated Glass provides the solar controlling properties of an insulating unit along with the safety features of the laminated inboard component. This allows the flexibility to design with hundreds of combinations of tinted glass, high-performance coatings, silk-screen patterns and pigmented interlayers, together or alone. In addition, Insulating Laminated Glass enhances acoustical performance, ultraviolet light protection, and the laminated component is designed to remain integral in the opening should glass damage occur. For this reason, insulating laminated glass is utilized for skylights or other overhead glazing applications.
Often the laminated inboard component is required to provide protection against man-made threats or natural disasters such as hurricanes, bomb blasts or forcible-entry.
While insulating laminated glass provides numerous benefits from protection to safety to acoustic improvements, the solar performance between an insulating unit and the insulating laminated counterpart is nominal.
