Laser Mold Taper Measuring Instrument
Posted at: Offers to Sell and Export | Posted on: Friday 17 February 2023 8:45 am | Poster last visit: Friday 7 June 2024 |
Product Category: Main
» Information Technology Broadcasting and Telecommunications
» Software
» Industry specific software
» Industrial control software
» Laser Mold Taper Measuring Instrument
Product Description:
MDC-L200 Laser Taper Measuring Instrument (Multi-dimensional Detection)
Overview:
Laser taper measuring
instrument (multi-dimensional detection) is a new type of mold multi-taper measuring instrument developed by our company. The instrument adopts a high-precision, high-sensitivity laser measurement and positioning sensor, which scans the copper plate of the mold by a fixed-width laser line, and returns the measurement data in real time. The host computer shows the data of mold taper, surface cracks, surface flatness and other data after modeling and analyzing the returned measurement data. The upper computer software intuitively reflects the situation of the multi-taper surface of the tested mold to the user in the form of data table, data curve and 3D model diagram of the mold taper, and provides a true and reliable theoretical basis for the on-site operators to maintain the mold.
The measurement principle:

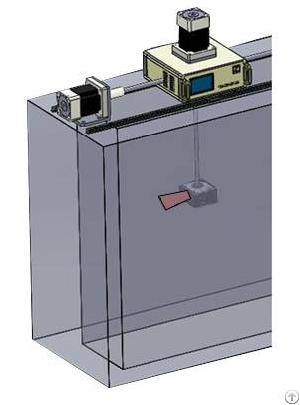

The mold multi-taper measuring instrument is a high-precision instrument. The whole instrument includes a high-precision laser ranging sensor, two digital servo motors, an encoder, a horizontal sliding screw, a vertical sliding screw, and a calibration console and controller etc. The equipment has many advantages such as high measurement accuracy, strong stability, easy installation and strong observability. The instrument is suitable for the multi-taper detection, surface flatness analysis and surface flaw detection of continuous casting molds in the continuous casting process of major iron and steel enterprises. It is suitable for round billets, square billets, slabs, etc., widely used and powerful. When measuring the multi-taper characteristics of the mold, the instrument is fixed on the top of the mold as shown in Figure 1. After the equipment is started, the self-inspection process is automatically completed, and the laser measuring sensor automatically returns to the initial zero position, and then the laser sensor scans along the inner surface of the mold under the drive of the digital servo motor, and then the laser sensor descends to a certain height to continue scanning for a circle. The entire inner surface of mold is repeatedly scanned from top to bottom. After the scanning is completed, the data is transmitted to the host computer through wireless communication or wired communication. The host computer software imports the collected data into the model base, and obtains the multi-taper status, surface flatness, cracks and other situation of the mold through calculation and analysis, which provide reliable maintenance reference data for on-site production and avoid production accidents on site due to the equipment failure.
The features:
Humanized human-computer interaction interface
Convenient system settings
Portable low power consumption design
Compatible detection structure with lots of specifications
High-speed and stable wireless data transmission
High-precision laser scanning measurement
One-click measurement design
Own network wireless transmission
Small and lightweight front-end measurement
The parameters:
Mold width range: 60~400mm
Measurement accuracy: 0.01mm
Spot diameter: 1.0x1.5mm (spot scan), 1.0x20mm (line scan)
Measurement method: laser displacement measurement
Measuring beam: 3200 points
Movement mode: high precision servo
Movement accuracy: 1mm/65536 pulses
Single measurement time: less than 2min
Power supply: DC12V
Operating temperature: -20~80℃
Shock resistance: 50G (X, Y, Z axis)
Company Contact:
Contact Name: Floria Liang
Company Name: Wuhan Centerrise M&c Engineering Co., Ltd.
Email:
Tel: 13995588597
Fax:
Street Address: Building 4, Hengxin
Industrial Park, No. 8 Xinhua
Avenue, Huangpi District
Wuhan, Hubei 432200
China
Member name: WuhanCenterRise
Country:
China
Member Since: 06 September 2022
Total Leads: 25 WuhanCenterRise Import Export Business Leads
Business focus: Mold Breakout Prediction System, Ladle Slag Detection System, Mold Expert System, Continuous Casting Billet Detection System, Roll Gap Measuring Instr
Chat:
Verify: Safe Import Export Tips
Overview:
Laser taper measuring
instrument (multi-dimensional detection) is a new type of mold multi-taper measuring instrument developed by our company. The instrument adopts a high-precision, high-sensitivity laser measurement and positioning sensor, which scans the copper plate of the mold by a fixed-width laser line, and returns the measurement data in real time. The host computer shows the data of mold taper, surface cracks, surface flatness and other data after modeling and analyzing the returned measurement data. The upper computer software intuitively reflects the situation of the multi-taper surface of the tested mold to the user in the form of data table, data curve and 3D model diagram of the mold taper, and provides a true and reliable theoretical basis for the on-site operators to maintain the mold.
The measurement principle:
The mold multi-taper measuring instrument is a high-precision instrument. The whole instrument includes a high-precision laser ranging sensor, two digital servo motors, an encoder, a horizontal sliding screw, a vertical sliding screw, and a calibration console and controller etc. The equipment has many advantages such as high measurement accuracy, strong stability, easy installation and strong observability. The instrument is suitable for the multi-taper detection, surface flatness analysis and surface flaw detection of continuous casting molds in the continuous casting process of major iron and steel enterprises. It is suitable for round billets, square billets, slabs, etc., widely used and powerful. When measuring the multi-taper characteristics of the mold, the instrument is fixed on the top of the mold as shown in Figure 1. After the equipment is started, the self-inspection process is automatically completed, and the laser measuring sensor automatically returns to the initial zero position, and then the laser sensor scans along the inner surface of the mold under the drive of the digital servo motor, and then the laser sensor descends to a certain height to continue scanning for a circle. The entire inner surface of mold is repeatedly scanned from top to bottom. After the scanning is completed, the data is transmitted to the host computer through wireless communication or wired communication. The host computer software imports the collected data into the model base, and obtains the multi-taper status, surface flatness, cracks and other situation of the mold through calculation and analysis, which provide reliable maintenance reference data for on-site production and avoid production accidents on site due to the equipment failure.
The features:
Humanized human-computer interaction interface
Convenient system settings
Portable low power consumption design
Compatible detection structure with lots of specifications
High-speed and stable wireless data transmission
High-precision laser scanning measurement
One-click measurement design
Own network wireless transmission
Small and lightweight front-end measurement
The parameters:
Mold width range: 60~400mm
Measurement accuracy: 0.01mm
Spot diameter: 1.0x1.5mm (spot scan), 1.0x20mm (line scan)
Measurement method: laser displacement measurement
Measuring beam: 3200 points
Movement mode: high precision servo
Movement accuracy: 1mm/65536 pulses
Single measurement time: less than 2min
Power supply: DC12V
Operating temperature: -20~80℃
Shock resistance: 50G (X, Y, Z axis)
