Product Description:

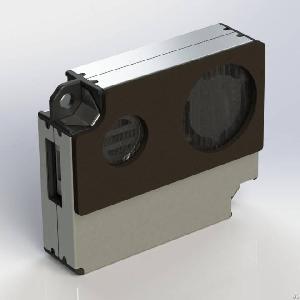

Laser PM2.5 Sensor Factory: Laser PM2.5 Air Quality Sensors, Low Power Consumption, Compact Structure,
DC 5±0.5V, Ripple<50mV, MTTF≥30000 Hours.
Specification Parameters
Measurement Type: PM2.5
Measurement Range: 0-1000μg/m3
Measurement Consistency: ≥100μg/m3: ±10%; <100μg/m3: ±10μg/m3
Measurement Accuracy (Reference Standard: TSI 8530): ≥100μg/m3: ±10%; <100μg/m3: ±10μg/m3
Data Interface: UART TTL, 9600 bps
Inlet and Outlet: Front
Power Supply: DC 5±0.5V, Ripple<50mV
Working Condition: Temp: -15-60℃; Humidity: 0-90% RH
Storage Condition: Temp: -30-70℃; Humidity: 0-90% RH
Weight: 26g
Size: 48mm x 37mm x 12mm
MTTF: ≥30000H (Intermittent Mode: Intermittent Operation)
