Product Description:

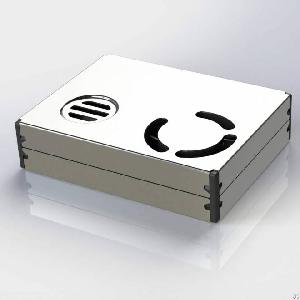

Laser Scattering Dust Monitor Maker: High Sensitivity Dust Monitors, Laser Scattering Principle, UART
Data Interface, Good Consistency, Stable Digital Output.
Specification Parameters
Measurement Type: PM2.5
Measurement Range: 0-1000μg/m3
Measurement Consistency: >100μg/m3: ±10%; <100μg/m3: ±10μg/m3
Measurement Accuracy (Reference Standard: TSI 8530): >100μg/m3: ±10%; <100μg/m3: ±10μg/m3
Data Interface: UART 9600 bps
Inlet and Outlet: Front
Power Supply: DC 5±0.5V
Working Condition: Temp: -15-60℃; Humidity: 0-90% RH
Storage Condition: Temp: -30-70℃; Humidity: 0-90% RH
Weight: 24g
Size: 48mm x 37mm x 12mm
MTTF: ≥30000H (Intermittent Mode: Intermittent Operation)
