Product Description:
launching gantry applies to highway, railway bridges to the construction site of bridge construction,
its main function is to mention prefabricated good beam slice and delivered on prefabricated good piers.it and general meaning cranes have very big different, high safety requirements.
The capacity:60-200ton
The span : 20-50m
Control Mode: Pendant, Remote Control and Cabin Control.
2.Launching gantry Details

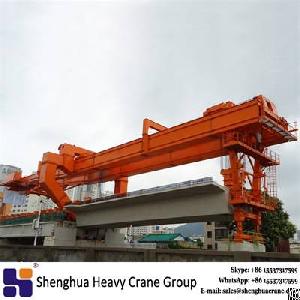

Launching gantry mainly consisted with main beam, cantilever, under guide beam, front and rear legs, auxiliary outrigger, hanging beam crane, cantilever crane and elecrto-hydraulic system. Applies to three different span single-span simply supported beam installation, with high operating efficiency.
Launching gantry is widely used in highway and railway construction This Machine is used for erecting concrete box girders for high speed (250km, 350km) passenger railway lines. This machine is suitable for equal span girders or different span girders which can be 20m, 24m and 32m, 50m. The rear part has two supports. One of the supports is "C" shape column with rotary and foldabletechnology. The "C" shape column technology saved the traverse space during traveling and which enables to travel through tunnels with the girder transfer vehicle.
HSHCL is a big enterprise specialized in researching, developing, producing and exporting.
It mainly produces double truss cable stayed bridge girder launching gantry erecting machine, overhead crane and gantry crane, beam launcher, movable scaffolding system crane, form traveller, straddle carrier, tyre transportor, beam trolley, portal crane and electric winch, electric hoist and all kinds of accessories, which widly cover machinery, metallurgy, electric power, railway, water conservancy, ports, terminals and other industries.
HSHCL have more than 600 stuff, and covers 200, 000 square meters.
Our advantages:
A. More than 50 R&D personnels with advanced Science and technology
B. More than 400 sets advanced Production processing equipment and inspection equipment
C. Independent intellectual property rights to develop energy saving bridge cranes, gantry cranes, and electric hoist
E. Obtain ISO 9001 certificate and more than 10 series of patent certificates
F. Efficient service and competitive products
G. Export more than 100 countries
