Product Description:

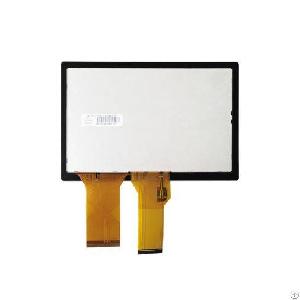

YS070KT01V1.0 is a 7.0 inch 800x480 resolution TFT-LCD module taped-bonded with strengthened glass touch
panel. Our 7-inch multi-touch TFT-LCD panel is a projected capacitive touch screen(PCAP) bonded on TFT-LCD panel with double-sided adhesive tape around the border or liquid optical clear adhesive. We provide different resolutions for option, 800x480, 1024x600, 1280x800. The touch can be chip on board (COB) with plug-and-play USB interface, or chip on connecting cable (COF) with IIC interface. This module is recommended for indoor industrial control systems, vehical accessaries, portable DVD, digital photo frame and etc.
Here are four advantages for YS070KT01V1.0:
Easy Assemblage. The touch and display are bonded together. No need to purchase them from different suppliers. And we supply the touch controller board with USB cable together with the touch display module. The board with HDMI, VGA, DVI interface is for option. The display cable, power cord, HDMI cable, VGA cable are for option. Besides, the touch panel outline is bigger than display panel outline, which is used for assembling this module to the enclosure with glue or adhesive tape.
High Reliability. It passes the reliability test for operating temperature at -20~70℃ for 240 hours and storage temperature at -30~80℃ for 240 hours.
Costdown Bonding Technology. 0.3mm adhesive tape is used for bonding the Yunshang touch panel to the TFT-LCD.
Multi-touch is plug-and-play. The PCAP touchscreen supports USB interface, auto-calibration, no need tuning. It works fine immediately after connecting the USB interface to the computer or mother board.
