Product Description:

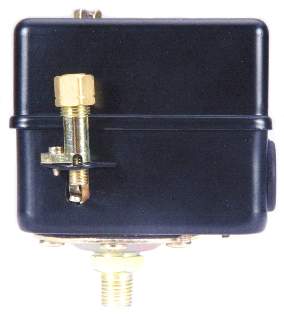

Lf17-1h
The rugged LF17 pressure switch is designed for the demanding requirements of lager, heavy
duty commercial air compressors (up to 250 psi). The sturdy painted steel case and cover resists the harsh conditions encountered in industrial applications. This style is also available with an unloader valve to prevent the compressor from starting under load.
Sturdy Stamped Steel Case & Cover
Visible Contact
No Drift Pressure Setting
Captive Cover nut
Ample Wiring Room
2 Ground Screw
Easy to Adjust
Automatic Unloader Valve Available
Pulsation Dampener Standard
5HP Heavy Duty Rating
250 PSI Max
c us #220707, a030034
model
Min ON (Cut-In)PSI
Max Off
(Cut-Out) PSI
Differential
psi
Factory Setting PSI Electrical Rating
Pipe Fittings
Contact Arrangement
120vac
240vac
lf17
40 250 25-60
145-175 24a
12a
1/4", 3/8" Male or Female NPT
nc
lf17-s
15
60
7-15
30-40 24a
12A 1/4", 3/8" Male or Female NPT
nc
Conversion: 1Kgf/cm2 = 14.2PSI, 1Bar = 14.5PSI
