Lglguo Pe2301bg Gigabit Poe Extender Standard Ieee802.3af / At / Bt Power Extension 400 Meters
Posted at: Offers to Sell and Export | Posted on: Wednesday 30 August 2023 7:18 am | Poster last visit: Wednesday 30 August 2023 |
Product Category: Main
» Information Technology Broadcasting and Telecommunications
» Data Voice or Multimedia Network Equipment or Platforms and Accessories
» Network service equipment
» Network repeaters
» Lglguo Pe2301bg Gigabit Poe Extender Standard Ieee802.3af / At / Bt Power Extension 400 Meters
Product Description:

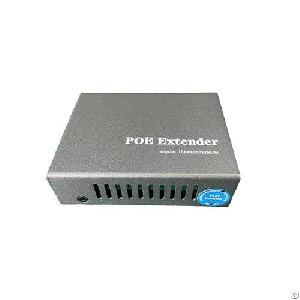

PoE Extender :PE2301BG
Product Overview
Extends Power over Ethernet Installations to 200 Meters
PoE
Extender is a cost effective way to extend the Ethernet network range beyond 100m, delivering both data and power to network devices such as WLAN Access Points and Network Cameras up to a distance of 200m while complying with IEEE PoE and Data standards.
The PoE Extender supports 10/100/1000Mbps data rates and delivers 802.3bt power levels, up to 90W. The PoE Extender does not require local power and is powered via the PoE input.
Key Features
- Extended PoE installation range by additional100m
- Supports 10/100/1000Mbps datarates
- Provides 802.3af power levels when powered by 802.3afPSE and 802.3af PD
- Provides 802.3at power levels when powered by 802.3atPSE and 802.3at PD
- Provides 802.3bt power levels when powered by 802.3btPSE and 802.3bt PD
- Extenders can be cascaded to reach up to400m
- Cost effective installation - no need for localpower
- Plug and play installation - no configurationneeded
Works Well With
PoE Switch
PoE Injector
Technical Specification
Pass Through Data Rates 10/100/1000 Mbps
Power over Ethernet Output Pin Assignment and Polarity: 12/45 (+), 36/78 (-)
Output Power Voltage: 45-57Vdc
Input Power Requirements PoE, supports alternatives A and B DC Input PoEVoltage: 46-57 Vdc
Max Input Current: 1.7A(90W)
Indicators System Indicator: DC Power Input/Output (Orange)
Ethernet Data Input/Output (Green)
Regulatory Compliance IEEE802.3af/at/bt (PoE), WEEE Compliant
Dimensions: (L x W x H) / Weight 84 mm x 65 mm x 24 mm / 0.18KG
Environmental Conditions Operating Ambient Temp.:
32°to 104°F (0 to 40°C) (1G rate)
32° to 122°F (0 to 50°C) (10/100M rate)
Operating Humidity: Maximum 90%, Non-condensing Storage Temperature: -4°to 158°F (-20°to 70°C) Storage Humidity: Maximum 95%, Non-condensing
Company Contact:
Contact Name: Allen
Company Name: Leguo Network Technology Co., Ltd
Email:
Tel: 18118787749
Fax:
Street Address: Inbolong Industrial
Plant, No. 1, Huayun Road, Yuc
Shenzhen, Guangdong 518100
China
Website: https://www.lglguo.net/
Member name: LGLGUO
Country:
China
Member Since: 15 February 2023
Total Leads: 11 LGLGUO Import Export Business Leads
Business focus: POE Injector, POE switch, POE Splitter
Chat:
Verify: Safe Import Export Tips
