Product Description:

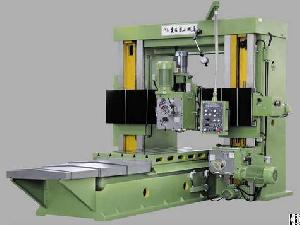

Light Plano Miller XQ20 series
Specifications XQ20 series Light Plano Miller/Plano Milling Machine/Gantry
Milling Machine/Double Column Milling Machine
xq2014-20 xq2014-30 xq2016-30
Table Size(W x L) mm 1000 x 2000 1000 x 3000 1200 x 3000
Motor power mm 4 5.5
Max. load kg 2000 3000 5000
Max. work-piece dimensions L x W x H mm 2000 x1400 x800 3000 x1400 x800 3000 x1600 x800
Distance between columns mm 1450 1620
Milling head Motor power kw 7.5
Spindle taper ISO50
Spindle speed r/min 100-685(6 steps)
Swivel angle ± 30°
Distance from spindle nose to table surface Vertical mm 0-800
Horizontal mm 100
Recommendatory dia.of tools mm Φ160
External dimensions L x W x H mm 6080x2630x2800 8080x2630x2800 8080x3230x2800
