Liquid Flow Measure Device Ultrasonic Heat Meter
Posted at: Offers to Sell and Export | Posted on: Friday 18 October 2019 2:33 am | Poster last visit: Friday 18 October 2019 |
Product Category: Main
» Laboratory and Measuring and Observing and Testing Equipment
» Measuring and observing and testing instruments
» Liquid and gas flow measuring and observing instruments
» Flowmeters
» Liquid Flow Measure Device Ultrasonic Heat Meter
Product Description:

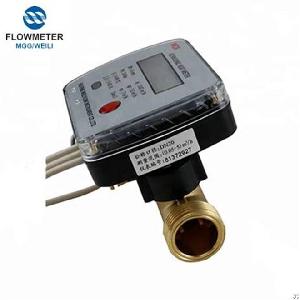

Liquid Flow Measure Device Ultrasonic Heat Meter
International Model Ultrasonic Heat Meter, International
Standard Flowmeter China
Quick Details:
Place of Origin Henan, China (Mainland) Brand Name WEILI Model Number WCR
Product Name Liquid flow measure device ultrasonic heat meter Medium WATER Accuracy 2
Power supply Battery Powered Output MBUS Application Household heat meter
Connection Thread Working pressure 1.6Mpa Material copper
Product Description:
The heat meter is a measuring instrument for measuring the heat released by a heating system using hot water as a heat transfer medium. The measured heat is accurately calculated by the calculator by measuring the flow rate and the inlet and outlet temperatures in the water supply pipe.
Flow Sensors
DN(mm) QS(m^3/h) QP(m^3/h) QI(m^3/h)
Dn15 0.03 1.5 3
Dn20 0.05 2.5 5
Dn25 0.07 3.5 7
Dn32 0.12 6.0 12
Dn40 0.20 10 20
Dn50 0.60 15 30
Dn80 1.60 40 80
Dn100 2.40 60 120
Dn125 4.00 100 200
Dn150 6.00 150 300
Dn200 10.0 250 500
Calculator
temperature range 4℃~95℃
Temperature difference 3K~65K
Temperature resolution 0.03℃
power supply 3.6V
Battery Life ＞6yeas
LCD 8bit
Temperature Sensor
Platinum resistance PT1000
diameter 5mm，8mm
cable length 1.5M
Technical Parameters
Ambient temperature 5℃~55℃
Working pressure 1.6MPa
Accuracy 2.0 Level
Main Features:
1) Using advanced foreign technology, it can automatically collect flow signal, inlet water temperature, return water temperature, automatically calculate instantaneous flow, cumulative flow, temperature difference and other parameters.
2) The hot and cold (heating, cooling) type heat meter can intelligently judge the heating or cooling state according to the actual use condition and measure separately.
3) It can be connected with M-BUS and RS485 interfaces to realize data remote transmission and centralized meter reading function, which is convenient for automatic intelligent management control of residential buildings.
More Product Please View Hifactory.
Company Contact:
Contact Name: Alex Yang
Company Name: Kai Feng Weili Flow Instrument Co., Ltd
Email:
Tel: 3782851531
Fax:
Street Address: No.6th Northern
Industrial Park.
Kai Feng, He Nan 475000
China
Website: https://www.weiliflowmeter.com
Member name: weiliflowmeter
Country: China
Member Since: 18 October 2019
Total Leads: 24 weiliflowmeter Import Export Business Leads
Business focus: Flow Meter, Electromagnetic Flow Meter, Turbine Flow Meter
Chat:
Verify: Safe Import Export Tips
