Lmp Series Single Cylinder Hydraulic Cone Crusher
Posted at: Offers to Sell and Export | Posted on: Thursday 25 May 2017 3:12 am | Poster last visit: Thursday 26 July 2018 |
Product Category: Main
» Mining and Well Drilling Machinery and Accessories
» Mining and quarrying machinery and equipment
» Crushers and breakers and grinders
» Cone crushers
» Lmp Series Single Cylinder Hydraulic Cone Crusher
Product Description:

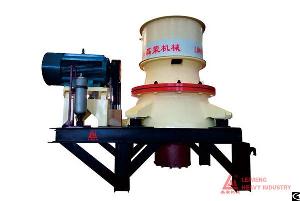

LMP Series Single Cylinder Hydraulic Cone Crusher
Type: Secondary crushing
Input size: 140-350mm
Processed
Materials:
Concrete waste, iron ore, copper ore, gold ore, manganese ore, gravel, granite, river stone, basalt, limestone, dolomite, quartz, coal, etc.
Applications:
Mining, metallurgy, construction, highway, railway, and water conservancy, etc.
Description
Single-cylinder hydraulic cone crusher is suitable for metallurgy, construction, road building, chemical and silicate industry crushing, can be used to crush all kinds of medium hardness and above ores and rocks. The hydraulic cone crusher's large proportion of size reduction ratio, high efficiency, low energy consumption, even final size suitable for crushing secondary and tertiary various ores and rocks.
Specifications
Model Stoke Max. Feeding size (mm) Weight
(kg) Motor
(kw) Closed edge material - dischaging port (mm) output (TPH)
8 10 15 20 25 30 35 40
Lmp100 16 40 - 150 5800 75 - 90 40 - 50 45 - 55 60 - 70 80 - 90 85 - 95
20 40 - 150 5800 75 - 90 50 - 55 50 - 60 70 - 80 95 - 105
25 40 - 150 5800 75-90 55 - 65 7 5- 90 105 - 120
Lmp200 18 40 - 120 9300 110 - 160 60 - 70 70 - 90 80-105 100 - 125 135 - 50 160 - 175 185 - 200
25 40 - 120 9300 110 - 160 90 - 110 110-130 130 - 15 160 - 180 185 - 210
32 40 - 120 9300 110 - 160 140-160 170 - 190 190 - 220
40 40 - 120 9300 110 - 160 200 - 220 220 - 240
Lmp300 25 40 - 260 13400 200 - 250 100 - 120 110 - 130 135-155 160-180 190 - 210 210 - 235 240 - 260
32 40 - 260 13400 200 - 250 110 - 130 120 - 150 165 - 195 195 - 225 230 - 260 265 - 295 300 - 330
40 40 - 260 13400 200 - 250 150 - 170 205 - 230 245 - 275 290-320 325-355
Lmp400 25 50 - 300 23500 220 - 315 130 - 150 155 - 175 180-200 210-230 230-255 260 - 280 330 - 350
32 50 - 300 23500 220 - 315 140 - 170 185 - 215 215-245 250-280 285-315 320 - 350 410 - 430
40 50 - 300 23500 220 - 315 225 - 250 265-295 310-340 345-375
Lmp500 25 50 - 300 26500 250 - 355 140 - 160 160 - 180 190-210 240-260 270-290 310 - 330 350 - 370
32 50 - 300 26500 250 - 355 230 - 250 270-290 310-330 340-370 380 - 410 430 - 450
40 5 0- 300 26500 250 - 355 290 - 310 320 - 340 380 - 410 430 - 460 480 - 510
Advantages & Characteristics
1. Advanced hydraulic technology implement overload protection and hydraulic adjustment discharge opening, simplify crusher structure and weight reduce.
2. Oil lubrication, reliable advanced, improve life.
3. Simple maintenance, easy operation.
Company Contact:
Contact Name: Lily Zhao
Company Name: Guangzhou Leimeng Machinery Equipment Company Limited
Email:
Tel: +86-020-38335119
Fax: +86-020-38335119
Street Address: No. 9 Yard,
Mubeidong Road, Xiao Xintang, Tianhe
District
Guangzhou, Guangdong 510000
China
Website: https://www.crusherlm.com
Member name: crusherlm
Country:
China
Member Since: 25 May 2017
Total Leads: 22 crusherlm Import Export Business Leads
Business focus: Stone Crushing Machine, Jaw Crusher
