Low Dth Hammers
Posted at: Offers to Sell and Export | Posted on: Monday 23 September 2019 2:33 am | Poster last visit: Tuesday 24 September 2019 |
Product Category: Main
» Mining and Well Drilling Machinery and Accessories
» Well drilling and operation equipment
» Drilling and operation machinery
» Striking hammers
» Low Dth Hammers
Product Description:
ANBIT Series DTH Hammer, a kind of valve-equipped Low-Air-Pressure hammer with a single piston, a plate
valve and a central exhaust structure.The compressed air is adopted as the driving force. To prevent dust pollution and get a better performance, some high-pressure water may be added into the air for wet rock DTH drilling.
Product Description
Product featured :
The strong energy of single impact and the low energy consumption in rock crushing;
2. The weight ratio of Piston and Bit almost Reaches 1:1 to provide long effective acting time, which leads to the improved efficiency in rock crushing and the extended service life of the drilling tool;
3. A good performance in central air exhaust and cuttings discharge, which reduces the repeated crushing of rock;
4. A check valve device is available to drill holes finder water.
The ANBIT Series DTH Hammer, an ideal drilling tool, is widely used in such industries relating to energy, transportation, metallurgy, building etc.
Specification
Length 870(mm)
Connection Thread F48x10 PIN
External Diameter 82(mm)
Weight 24(KG)
Hole Range 90-120(mm)
Working Pressure 10-13(Bar)
Air Consumption 8-10 (m³ / min)
dirll Tail rod CIR90 / M3

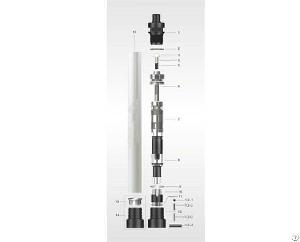

1、Connection ANBIT3-01 9、Reed spring ANBIT3-09
2、O type ring ANBIT3-02 10、Guide sleeve ANBIT3-10
3、top ANBIT3-03 11、"O"ring ANBIT3-11
4、check valve ANBIT3-04 12、front top sub ANBIT3-12
5、spring ANBIT3-05 13、stop ring ANBIT3-13
6、valve seat ANBIT3-06 12、front top sub ANBIT3-14
7、Cylinder ANBIT3-07 15、outer tube ANBIT3-15
8、piston ANBIT3-08
ABT Drilling Equipment Co., Ltd. mainly provides drilling rig equipment to help you solve the problem of drilling at high efficiency and low cost. Always feel free to inquiry!
Company Contact:
Contact Name: Carl White
Company Name: Anbit Mechanical And Electrical Equipment Co., Ltd.
Email:
Tel: 024-88039488
Fax:
Street Address: No. 95-2, Blacksmith
Road, Hunnan District, Shenyang,
Liaoning Liaoning, Shenyang 110025
China
Website: https://abitdrill.com
Member name: abitdrill
Country:
China
Member Since: 23 September 2019
Total Leads: 7 abitdrill Import Export Business Leads
Business focus: Inverted Hammer, Industrial Drill Bits
Chat:
Verify: Safe Import Export Tips
valve and a central exhaust structure.The compressed air is adopted as the driving force. To prevent dust pollution and get a better performance, some high-pressure water may be added into the air for wet rock DTH drilling.
Product Description
Product featured :
The strong energy of single impact and the low energy consumption in rock crushing;
2. The weight ratio of Piston and Bit almost Reaches 1:1 to provide long effective acting time, which leads to the improved efficiency in rock crushing and the extended service life of the drilling tool;
3. A good performance in central air exhaust and cuttings discharge, which reduces the repeated crushing of rock;
4. A check valve device is available to drill holes finder water.
The ANBIT Series DTH Hammer, an ideal drilling tool, is widely used in such industries relating to energy, transportation, metallurgy, building etc.
Specification
Length 870(mm)
Connection Thread F48x10 PIN
External Diameter 82(mm)
Weight 24(KG)
Hole Range 90-120(mm)
Working Pressure 10-13(Bar)
Air Consumption 8-10 (m³ / min)
dirll Tail rod CIR90 / M3
1、Connection ANBIT3-01 9、Reed spring ANBIT3-09
2、O type ring ANBIT3-02 10、Guide sleeve ANBIT3-10
3、top ANBIT3-03 11、"O"ring ANBIT3-11
4、check valve ANBIT3-04 12、front top sub ANBIT3-12
5、spring ANBIT3-05 13、stop ring ANBIT3-13
6、valve seat ANBIT3-06 12、front top sub ANBIT3-14
7、Cylinder ANBIT3-07 15、outer tube ANBIT3-15
8、piston ANBIT3-08
ABT Drilling Equipment Co., Ltd. mainly provides drilling rig equipment to help you solve the problem of drilling at high efficiency and low cost. Always feel free to inquiry!
Company Contact:
Contact Name: Carl White
Company Name: Anbit Mechanical And Electrical Equipment Co., Ltd.
Email:
Tel: 024-88039488
Fax:
Street Address: No. 95-2, Blacksmith
Road, Hunnan District, Shenyang,
Liaoning Liaoning, Shenyang 110025
China
Website: https://abitdrill.com
Member name: abitdrill
Country:
ChinaMember Since: 23 September 2019
Total Leads: 7 abitdrill Import Export Business Leads
Business focus: Inverted Hammer, Industrial Drill Bits
Chat:
Verify: Safe Import Export Tips
