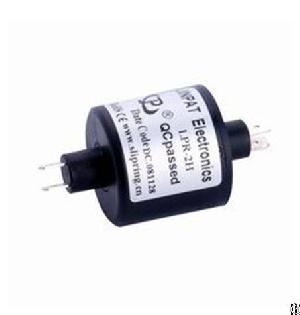

Lpr-2h Series Slip Ring With Environment-friendly Design
Posted at: Offers to Sell and Export | Posted on: Friday 11 December 2015 3:17 am | Poster last visit: Monday 28 March 2016 |
Product Category: Main
» Electrical Systems and Lighting and Components and Accessories and Supplies
» Electrical equipment and components and supplies
» Power conditioning equipment
» Slip rings
» Lpr-2h Series Slip Ring With Environment-friendly Design
Product Description:
A slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation
while transferring power or data from a stationary to a rotating structure. A slip ring is also called a rotary electrical interface, collector, swivel or a commutator. A slip ring can improve system performance by simplifying operations and eliminate damage prone to wires dangling from movable joints.
LPR-2H Series high Current slip ring provides routing space for hydraulics, pneumatics or a concentric shaft mount. The LPR-2H uses advanced fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates. In addition, fiber brushes do not require lubrication and produce virtually no wear debris.
Features:
1.No mercury, environment-friendly design
2. Pins connector, convenient for installation
3.Speed up to 300 rpm continuous
4.Steel bearings and machined shaft and housing for harsh environment
5.Collar mounting is standard; flange mounting is optional
6.Various lead exits are available
7. Silver plated rings are standard. Gold plated optional.
8.Continuous 360°rotation of power or data signals
9. Sealed unit
Advantage:
1.Fiber brush technology provides maintenance-free operation (no lubrication required)
2. Modular design meets special requirements through off-the-shelf manufacturing techniques
3.Customized configurations for your application
Main Application:
1. Packaging / wrapping machinery
2. Semiconductor handling systems
3. Industrial machinery
4. rotary index tables
5. Process control equipment
6. Heavy equipment turrets or cable reels
7. Exhibit Display machinery Medical equipment
8. Emergency lighting, robotics Palletizing machines
Option:
1. Placement of custom circuitry directly onto the unit
2.Custom mechanical integration features
3. Addition of special components
4. Inclusion of coax and miniature data bus cables
Specifications:
Operating Speed 0-300 rpm
Number of Circuits 2
Voltage 380 VAC/DC
Current Rating 25A per circuit
Temperature Range -20℃ to +60℃
Contact Material Precious metal
Connecting Way Silver plated pin
Housing Material Engineering plastic
Lead Length Standard 250 mm (9.843inch)
Dielectric Strength ≥500 VAC @50Hz, between each circuit
Insulation Resistance 1000 MΩ @ 500 VDC
Electrical Noise 1mΩMin
