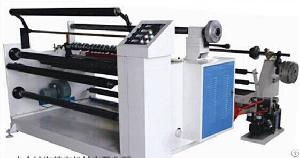

Product Description:
Divide big raw insulation material including DMD paper to needed size, Suitable for slitting paper, film,
tape laminated film, etc.
Main Data:
WD-1000G Max. Raw material width 1000mm diameter 800mm
Finished products width 25-1000 mm diameter 450 mm(max)
WD-1300G Max. Raw material width 1300mm diameter 800mm
Finished products width 25-1300 mm diameter 450 mm(max)
WD-1600G Max. Raw material width 1600mm diameter 800mm
Finished products width 25-1600 mmdiameter 450 mm(max)
Inside diameter of paper core 3''
Machine speed 0-120 M/min
Power Supply: 220V/380V/440V 3-Phase 50/60 HZ
Suitable for slitting paper, film, tape laminated film, etc.
Main motor device:AC motor with converter works as material transfer to achieve steady and rapid progression by acceleration and deceleration.
Three motors contain main motor and two rewind magnetic powder form constant control.The main motor is for feeding and rewind, magnetic powder are for tension control so that the finished products have stable tension and smooth appearance.
Rewind unit:rewind shaft uses press roller to eliminate air to make finished products tense and nice outlook.
Rewind unit:Rewind shaft uses press roller to eliminate air to make finished products tense and nice lookout.
Finished product rewind:With bar type air shaft or differential shaft, suitable for more materials.The shaft exchange is by special design and easy to change.
Electricity unit:LCD touch panel is used for setting tension, length, etc.Th control system adopts Siemens PLC to control movements with detecting function so error can be found out easily.
