Product Description:

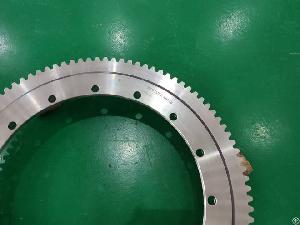

Machine Tools use four point contact ball bearing RKS.21 0841 950x773x56mm
The bearing application: Machine
tools Telescopes
Bearing details:Four point contact ball bearing
Bearing factory model number:RKS.210841
China Bearing old type:RKS.21 0841
Bearing boundary Dimension: 950*773*56 mm
ID(inner diameter)/:773 mm
OD(outer diameter):950 mm
Width/Height/thickness:56 mm
Precision grade:P5 P6 grade
Basic load rating C :(KN) 222
Basic load rating Co:(KN) 580
Weight:68 KGS
Radial clearance:C1 C2 C3 Gruop available
Outer Ring material:42CrMo, 50Mn
Inner Ring material:42CrMo, 50Mn
Teeth parameter
d0=936mm
m=8
z=117
Ball brand LYC Brand
Service: Offer assembly drawing, technology service
Quality Control: ISO9001:2008 Quality certificate
The seaport name:Shanghai or Tianjin or qingdao seaport
Bearing boundary inch size:37.40x30.43x2.20
Bearing outer diameter inch: 37.40 inch size
Bearing inner diameter inch size:30.43 inch size
Bearing height inch:2.20 inch size
Load Direction:Radial Bearing
Rolling Body:ball Bearings
Clearance:C3 C0 available
Outer Ring and Inner Ring heat treatment:HRC55-62
The bearing working speed:1000rpm
OEM Available
